| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

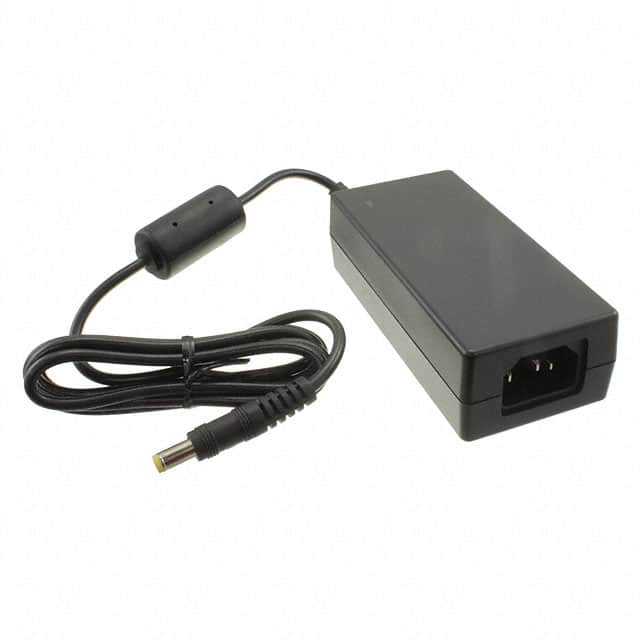

This GlobTek TR9CH2222CCP-N(R6B) is an AC/DC desktop adapter designed for ITE (Commercial) applications. It delivers a stable 18V output at 2.22A, with a maximum power of 40W. The adapter meets Level VI efficiency standards, ensuring energy savings and reduced heat generation.
Key features include an IEC 320-C14 input connector and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization. The unit operates within a temperature range of 0°C to 40°C and has a low no-load power consumption of 75mW maximum. Its compact desktop form factor measures 111.0mm x 52.0mm x 32.3mm.
The adapter is approved by multiple agencies including CB, CE, cULus, EAC, FCC, LPS, PSE, UKRSepro, and VCCI, adhering to the Standard Number 60950-1. It is suitable for international use.
100-240 VAC.
18V DC at 2.22A (40W).
0°C to 40°C.
Barrel plug, 2.1mm ID x 5.5mm OD, positive center.
Level VI, with maximum no-load power consumption of 75mW.
IEC 60950-1, with approvals including CB, CE, cULus, FCC, LPS, PSE, etc.
Desktop (Class I) with dimensions 111mm x 52mm x 32.3mm.
