| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

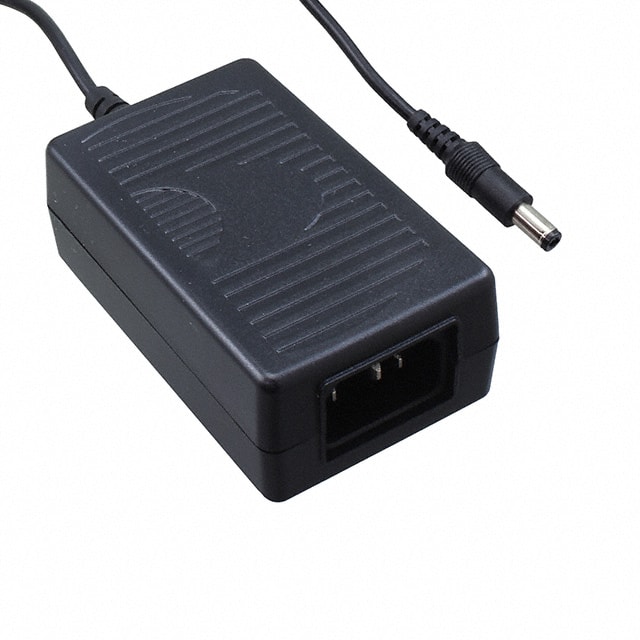

This AC/DC desktop adapter from GlobTek, Inc., part number TR9CH1333CCP-N(R6B), delivers 24 watts of power with an 18V output at 1.33A. Designed for ITE commercial applications, it features a Level VI efficiency rating and operates within a 0°C to 40°C temperature range.
The adapter utilizes an IEC 320-C14 input connector and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D. x 11.0mm) with positive center polarization. Its compact dimensions are 80.6mm x 50.0mm x 31.0mm. The input type is a cord, sold separately, with a cord length of 1.53m.
Compliance includes standards such as 60950-1 and various agency approvals including CB, CCC, CE, cULus, and PSE. It has a low no-load power consumption of 75mW maximum. The device is classified as a Desktop (Class I) form factor and is suitable for international use.
The adapter provides an 18V output at 1.33A.
This adapter has a power rating of 24W.
It meets Level VI efficiency standards.
The operating temperature range is 0°C to 40°C.
It uses an IEC 320-C14 input connector.
The output connector is a barrel plug with 2.1mm I.D. x 5.5mm O.D. x 11.0mm dimensions and positive center polarization.
Yes, it is RoHS3 Compliant.
