| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

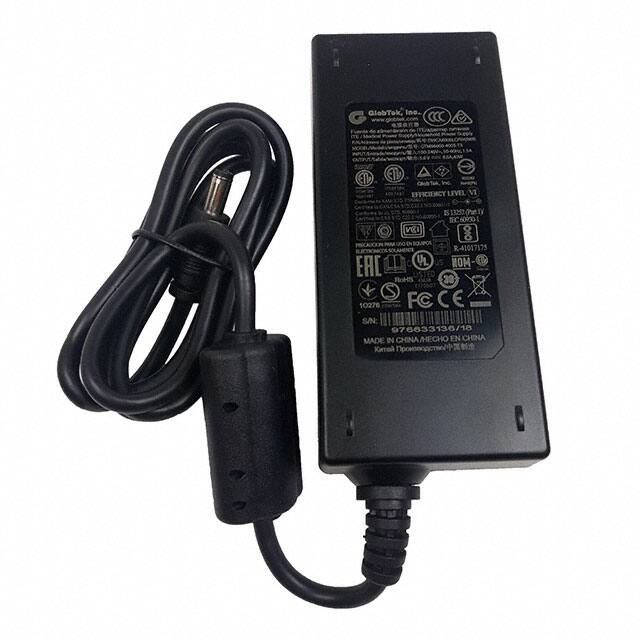

This GlobTek, Inc. TR9CA8000LCPIM(R6B) is an AC/DC desktop adapter designed for various applications including household appliances, ITE commercial, and medical equipment. It delivers a stable 5V output with a maximum current of 8A, providing a total power of 40W.
The adapter features an IEC 320-C14 input connector and a barrel plug output (2.5mm I.D. x 5.5mm O.D. x 11.5mm) with positive center polarization. It operates within a temperature range of -20°C to 40°C and complies with Level VI efficiency standards. The input type is a cord, sold separately, with an available cord length of 47.2 inches (1.20m).
Compliance is ensured through multiple agency approvals including CE, cULus, FCC, and UL. The device is designed as a Class I desktop unit, with a no-load power consumption of 75mW maximum. Its dimensions are 117.5mm x 53.5mm x 34.2mm.
The output voltage is 5V and the output current is 8A.
The output power is 40W.
It uses an IEC 320-C14 input connector.
The operating temperature range is -20°C to 40°C.
It has a Level VI efficiency rating.
The output connector has a positive center polarity.
The dimensions are 117.5mm length, 53.5mm width, and 34.2mm height.
