| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Tape & Reel | |
| Voltage | |
| Width |

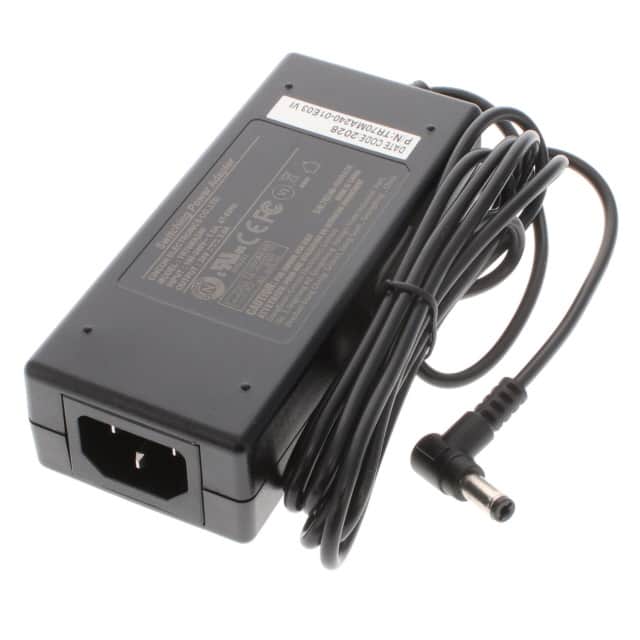

The Cincon TR70MA240-01E03 VI is an AC/DC desktop adapter designed for reliable power conversion. It delivers a 24V output with a maximum power rating of 72W and a current of 3A.
This adapter features an input connector compatible with IEC 320-C14 and a positive center barrel plug output connector (2.1mm I.D. x 5.5mm O.D.). It operates within a temperature range of -20°C to 70°C and consumes a maximum of 150mW at no load, achieving Level VI efficiency and CoC Tier 2 compliance.
Designed for international use, the TR70MA240-01E03 VI is approved by CE, cURus, FCC, and Nemko. Its compact dimensions are 120.0mm x 52.0mm x 31.0mm. The adapter is suitable for medical applications and is RoHS3 compliant.
The unit utilizes a Class I desktop form factor and requires a separate power cord. The included cord length is 1.80m.
The output voltage is 24V.
The maximum power output is 72W.
The operating temperature range is -20°C to 70°C.
It has an IEC 320-C14 input connector.
The output connector is a Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm.
Yes, it is RoHS3 Compliant.
