| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,574 pcs
|
1574 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Fault Protection | |
| Function | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| SVHC Present | |
| Supplier Device Package | |
| Switch Type | |
| Tape & Reel | |
| Voltage |
The Texas Instruments TPS2HB16AQPWPRQ1 is a 2-channel smart high-side switch suitable for automotive applications. It operates within a voltage range of 6V to 18V and offers a typical on-resistance of 16mΩ. The device provides an adjustable current limit, ranging from 4.1A to 48.5A, with an accuracy of -35% to +30%.
Key internal features include current sense output, current sense/monitor capabilities, programmable current limit, thermal shutdown, and under-voltage lockout. The switch type is general purpose, with an N-channel output configuration operating on the high side. It supports an On/Off interface and includes fault protection such as adjustable current limiting and over-temperature protection.

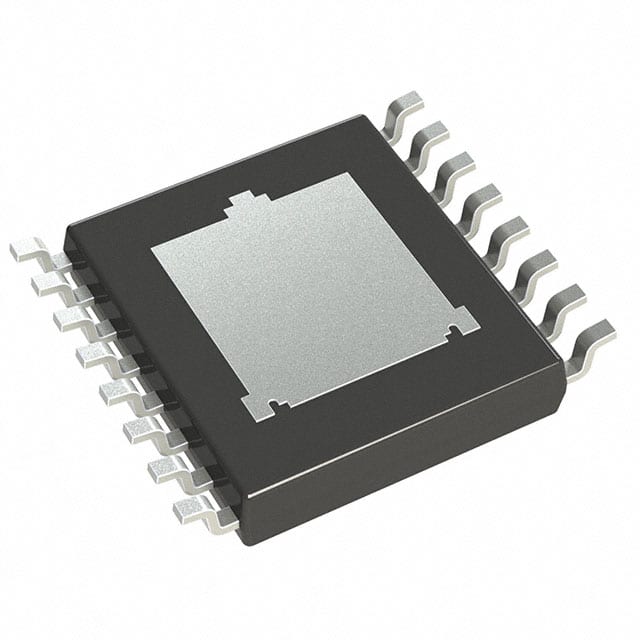

This component is available in a 16-HTSSOP package, specifically the 16-PowerTSSOP (0.173", 4.40mm Width) variant, and is designed for surface mounting. The operating temperature range is from -40°C to 125°C (TA). Functions include adjustable current limit, automotive load dump compatibility, current monitoring, inductive load compatibility, inrush current control, short circuit protection, and thermal shutdown.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.28 | $1.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 6V to 18V.
The maximum continuous current is 5A per channel.
The typical on-resistance is 16mOhm.
The operating temperature range is -40°C to 125°C.
It is available in a 16-HTSSOP or 16-PowerTSSOP surface-mount package.
Yes, the current limit is adjustable from 4.1A to 48.5A.
Fault protections include adjustable current limiting and over-temperature shutdown.
