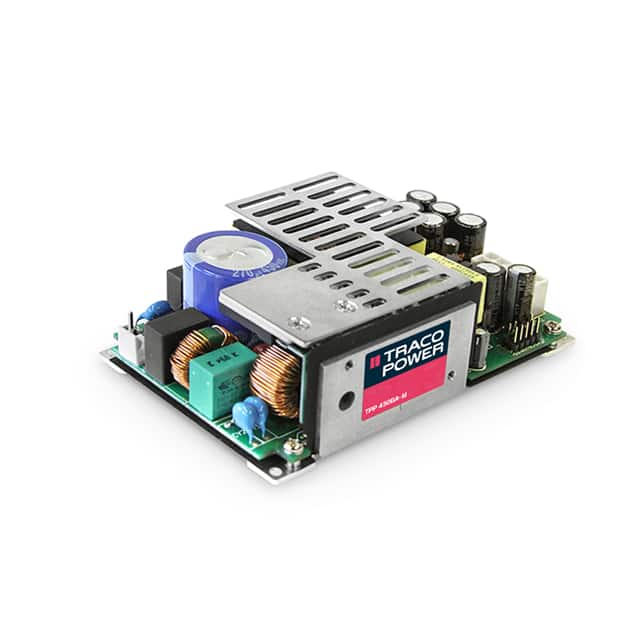

This Traco Power TPP 450-136BA-M is an open frame AC/DC converter designed for ITE (Commercial) and Medical applications. It provides a continuous output power of 320W, which can be boosted to 450W with forced air.
The converter boasts high efficiency of 93% and features such as adjustable output, PFC, standby output, and remote on/off functionality. Its dimensions are 127.0mm x 76.2mm x 40.1mm, and it is designed for chassis mounting.
Key electrical specifications include an output current of 8.9A and an isolation voltage of 4kV. The operating temperature range is -40°C to 85°C with derating. It complies with safety standards like 60601-1 and 62368-1.
The operating temperature range is -40°C to 85°C with derating.
The output voltage is 36V.
The output current is 8.9A.
It is rated for 320W continuous power, or 450W with forced air cooling.
It is approved to CB, CE, and cURus standards.
Yes, the output voltage is adjustable.
The isolation voltage is 4 kV.
