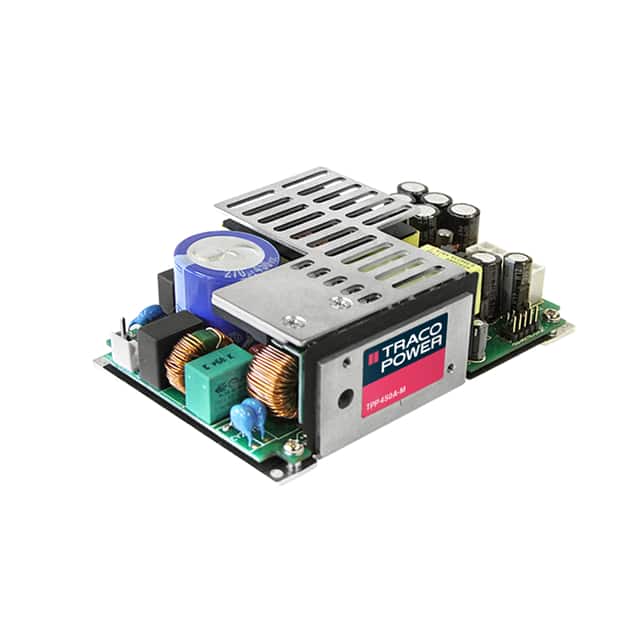

The Traco Power TPP 450-136A-M is an open frame AC/DC converter designed for ITE (Commercial) and Medical applications. It provides a power output of 319W, with a peak capability of 450W under forced air conditions, and features a 36V output.
This converter boasts high efficiency at 93% and includes features such as adjustable output, DC input capability, power factor correction (PFC), a standby output, remote on/off control, and universal input. Its dimensions are 127.0mm x 76.2mm x 40.1mm (5.00" x 3.00" x 1.58").
The TPP 450-136A-M is suitable for chassis mounting and operates within a temperature range of -40°C to 85°C with derating. It meets safety standards including 60601-1 and 62368-1, and holds CB, CE, and cURus agency approvals.
The output voltage is 36V and the current is 8.86A.
It provides 319W continuous power, or 450W with forced air cooling.
The operating temperature range is -40°C to 85°C with derating.
It complies with 60601-1 (medical) and 62368-1 (ITE) standards.
The efficiency is 93%.
The dimensions are 127.0mm x 76.2mm x 40.1mm (5.00" x 3.00" x 1.58").
Yes, it includes power factor correction (PFC).
