| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Weight | |
| Width |

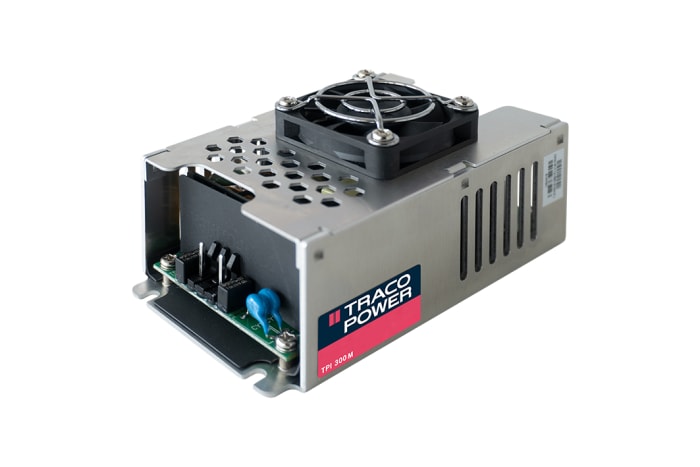

The Traco Power TPI 300-115-M is a 300W enclosed AC DC power supply designed for versatile applications. It accepts a universal input voltage range of 85V ac to 264V ac and provides a regulated 15V dc output with an adjustable range of 13.5V to 16.5V dc. The nominal output current is 20A, with a peak capability of 24A, and it offers a peak power output of 360W for short bursts.
This power supply boasts high efficiency of up to 92% and features active power factor correction greater than 0.9 for improved power utilization. It operates within a wide temperature range of -40°C to 80°C with derating. Key features include 3000V ac I/O isolation and short circuit protection, enhancing safety and reliability.
The TPI 300-115-M is designed for chassis mounting, making it suitable for integration into various systems. Its specifications and approvals, including IEC/EN/UL 62368-1, make it applicable for ITE (Commercial) applications, medical devices, industrial automation, and telecommunications equipment requiring stable and reliable power.
Dimensions are 116.8mm in length, 62.0mm in width, and 58.9mm in height. The unit weighs 318g.
The output voltage is 15V dc, adjustable from 13.5V dc to 16.5V dc.
The nominal output current is 20A, with a peak current capability of 24A.
The input voltage range is 85V ac to 264V ac.
The power rating is 300W, with a peak power output of 360W.
The operating temperature range is -40°C to 80°C, with derating.
The dimensions are 116.8mm in length, 62.0mm in width, and 58.9mm in height.
Yes, it complies with IEC/EN/UL 62368-1 safety standards, making it suitable for medical applications.
