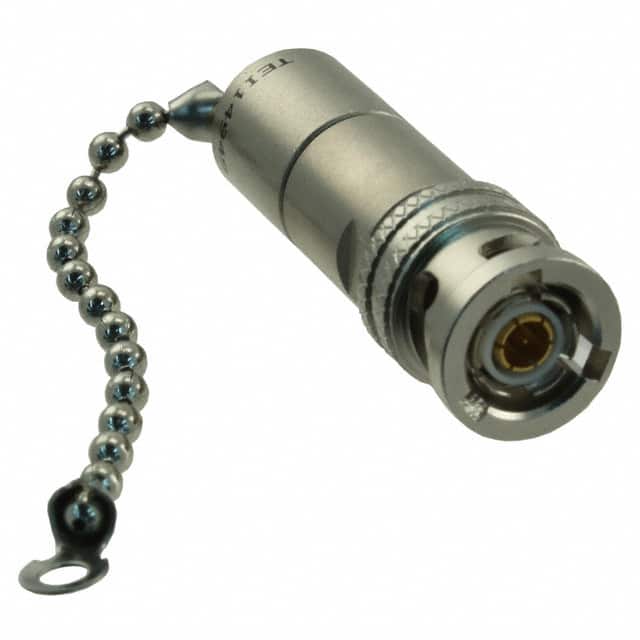

TNG1-4-78 Cinch TNG1-4-78 is a TRB jack termination with 78 Ohm impedance, rated for 0.5 GHz, featuring a free hanging cap mount and brass body.
Mfr Part #:

TNG1-4-78

Available from 1 distributors
Mfr Name: Cinch
Cinch
Cinch TNG1-4-78 is a TRB jack termination with 78 Ohm impedance, rated for 0.5 GHz, featuring a free hanging cap mount and brass body.
✓ Total Stock: 1 pcs
$ Price Range: $58.73 - $77.31

TNG1-4-78 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request 2145 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TNG1-4-78 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Body Material
Connector Style
Connector Type
Failure Rate
Features
Gender
Impedance
Mounting Type
View Similar Products (0)

TNG1-4-78 Description

Short technical summary and product information.

The Cinch TNG1-4-78 is a TRB jack termination designed for 78 Ohm systems. It operates up to 0.5 GHz and features a free hanging, cap mounting style. The connector body is made of brass and includes a three-lug chain for secure attachment. This terminator is part of the BNC series and is suitable for RF applications requiring a reliable 78 Ohm load.

TNG1-4-78 Quick Information

Product Type: Coaxial Connector (RF) Terminator
Series: BNC
Canonical Name: TRB Jack Termination, 78 Ohm, Free Hanging, Cap
Subcategory: TRB

TNG1-4-78 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TNG1-4-78 Estimated Pricing

Qty Low High
1+ $77.31 $77.31
10+ $69.60 $69.60
20+ $66.85 $66.85
50+ $64.49 $64.49
100+ $59.60 $59.60
200+ $58.73 $58.73

Estimated market price range - modelled values for guidance only, not live distributor offers.

TNG1-4-78 Features

  • 78 Ohm impedance for TRB systems.
  • Operates up to 0.5 GHz frequency.
  • Free hanging cap mount design.
  • Brass body with three-lug chain.
  • RoHS3 compliant with MSL 1.

TNG1-4-78 Applications

  • Terminating 78 Ohm RF transmission lines.
  • Used in test and measurement setups.
  • Suitable for communication system loads.
  • Ideal for TRB connector applications.

TNG1-4-78 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the impedance of the TNG1-4-78?

The TNG1-4-78 has a 78 Ohm impedance.

What is the maximum frequency rating?

The maximum frequency is 0.5 GHz.

What mounting type does this terminator use?

It uses a free hanging, cap mounting type.

What is the body material of the TNG1-4-78?

The body is made of brass.

Is the TNG1-4-78 RoHS compliant?

Yes, it is listed as RoHS3 compliant.
