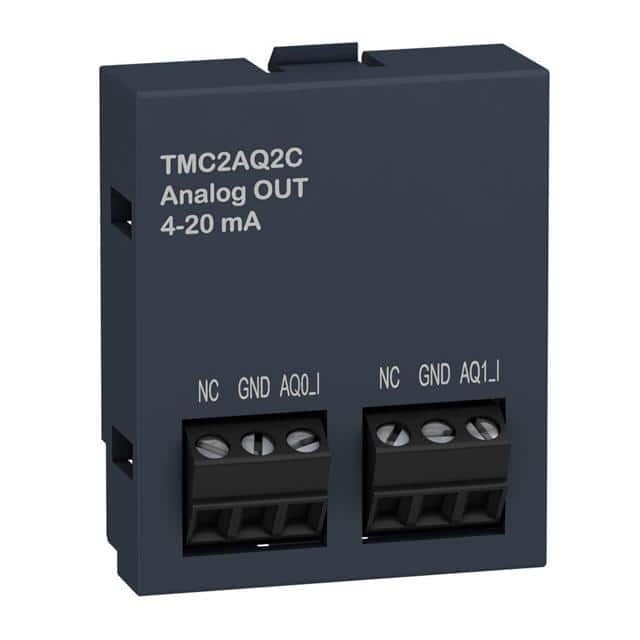

The Schneider Electric TMC2AQ2C is an analogue output cartridge designed for the Modicon M221 series PLC. This module provides 2 analog current outputs, operating in the 4 to 20 mA range, with a resolution of 12 bits.
Key electrical specifications include a maximum load impedance of 500 Ohms, a conversion time of 20 ms, and a stabilization time of 40 ms. The absolute accuracy error is +/- 1% of full scale, with improved accuracy of +/- 0.3% at 25°C. Temperature drift is rated at +/- 0.02 %FS/°C.
The cartridge utilizes twisted shielded pairs cable for connections, with a maximum recommended cable distance of 30 meters. The electrical connection is made via 3 x 1.5 mm² screw terminal blocks with a 3.81 mm pitch.
Mechanically, the unit has dimensions of 41 mm in height, 15 mm in depth, and 35 mm in width. It is compatible with the Modicon M221C product line.
| Qty | Low | High |
|---|---|---|
| 1+ | $113.07 | $113.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TMC2AQ2C features 2 analog current outputs of type 4...20 mA with a resolution of 12 bits.
The maximum load impedance for the TMC2AQ2C is 500 Ohms.
The conversion time for the TMC2AQ2C is 20 ms.
The absolute accuracy error is +/- 1% of full scale, and +/- 0.3% of full scale at 25°C.
The temperature drift for the TMC2AQ2C is +/- 0.02 %FS/°C.
The maximum cable distance for the TMC2AQ2C outputs is 30 meters (98.43 ft).
The TMC2AQ2C is RoHS3 Compliant.
