NN1001TRSHRQ1
Texas Instruments
The Texas Instruments NN1001TRSHRQ1 is a Mixed-Signal IC designed for various applications. It comes in a SOIC-8 package and operates within an industrial temperature range.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14,000 pcs
|
14000 pcs | On Request | 1 | On Request | On Request | 26+ | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature |

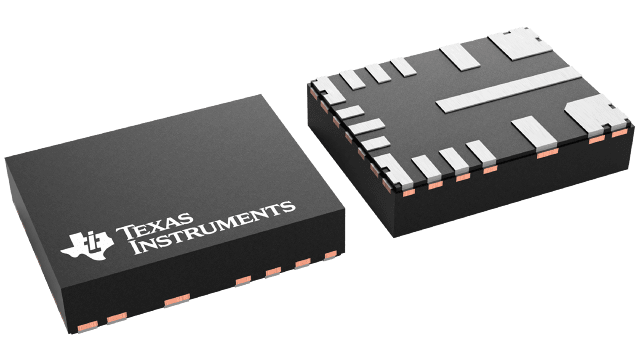

The TLVM13660RDLR from Texas Instruments is a versatile synchronous buck DC/DC power module designed for high-density applications. It integrates MOSFETs, an inductor, and a controller into an enhanced HotRod™ QFN package.
This module supports a wide input voltage range of 3V to 36V and provides an adjustable output voltage from 1V to 6V with 1% set-point accuracy over the entire temperature range. It can deliver up to 4A of output current and features a peak efficiency of over 95%. The switching frequency is adjustable from 200 kHz to 2.2 MHz.
Designed for low EMI, the TLVM13660RDLR meets CISPR 11 and 32 Class B emission requirements. It includes inherent protection features such as over-current and thermal shutdown. The module is housed in a compact 5.0mm x 5.5mm x 4mm overmolded plastic package with a junction temperature range of -40°C to 125°C.
Applications include test and measurement, aerospace and defense, and factory automation. The module's pinout is compatible with the TLVM13660 (36V, 6A) for scalable power solutions.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.16 | $2.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TLVM13660RDLR supports an input voltage range from 3V to 36V.
The output voltage can be adjusted from 1V to 6V.
The TLVM13660RDLR can provide a maximum output current of 4A.
The module achieves a peak efficiency of over 95%.
The junction temperature range is -40°C to 125°C.
Yes, it meets CISPR 11 and 32 Class B emission requirements.
