The TPS568330RJER from Texas Instruments is a synchronous step-down (buck) voltage regulator designed for cost-effective solutions. It operates with an input voltage range of 4.5V to 18V and can deliver a continuous output current of up to 8A. The output voltage is adjustable from 0.6V to 7V, with a precise 0.6V ±1% reference voltage at 25°C.
This converter features integrated MOSFETs with low on-resistance (19.5 mΩ high side, 9.5 mΩ low side) for high efficiency. It utilizes the D-CAP3 architecture for fast transient response and supports selectable switching frequencies of 600kHz, 800kHz, and 1MHz. Additional features include adjustable soft-start, power good output, built-in output discharge, and cycle-by-cycle overcurrent protection.

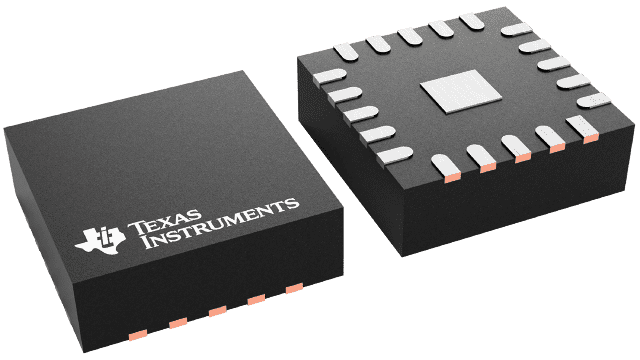

The TPS568330RJER is housed in a compact 3.0mm x 3.0mm HotRod QFN package, suitable for surface mounting. Its Ultra Low Quiescent current (ULQ™) feature is beneficial for enabling long battery life in power-sensitive applications. Selectable operation modes include Forced Continuous Conduction Mode (FCCM), Out-of-Audio™ (OOA) Mode, and Advanced Eco-Mode™.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.95 | $2.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 4.5 V to 18 V.
The output voltage range is 0.6 V to 7 V.
Selectable switching frequencies are 600 kHz, 800 kHz, and 1 MHz.
The maximum duty cycle is 85%.
It is packaged in a VQFN-HR (RJE) surface-mount package.
It operates over -40°C to 125°C.
RoHS3 compliant.
