5962-9682201QDA
Texas Instruments
The Texas Instruments 5962-9682201QDA is a MILITARY 4-CH, 2-INPUT, 2-V TO 5 current regulation transistor. It features a W CFP package with 14 pins.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | 25+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type |

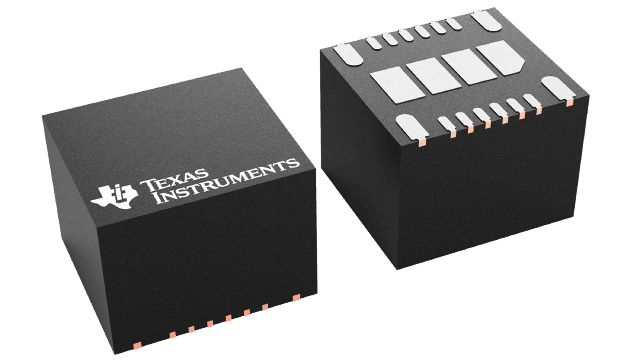

The TLVM13640RDLR from Texas Instruments is a versatile synchronous buck DC/DC power module designed for high-density applications. It integrates MOSFETs, an inductor, and a controller into a compact 5.0-mm x 5.5-mm x 4-mm overmolded package.
This module supports a wide input voltage range from 3 V to 36 V and provides an adjustable output voltage from 1 V to 6 V with 1% setpoint accuracy over temperature. It features an adjustable switching frequency from 200 kHz to 2.2 MHz, enabling optimization for efficiency and EMI performance. The TLVM13640RDLR boasts ultra-high efficiency across the full load range, with peak efficiencies exceeding 95% and a typical dropout voltage of 0.5 V at a 4-A load.
Key features include EMI tested performance, enable functionality, and power good indication. The module operates within a junction temperature range of -40°C to 125°C. Its design incorporates integrated capacitors and a low parasitic Hotrod packaging for enhanced performance and reduced board space.
Applications for the TLVM13640RDLR include power management in various electronic systems requiring efficient and reliable DC/DC conversion. Its robust design and wide operating parameters make it suitable for demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.34 | $2.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is from 3 V to 36 V.
The output voltage can be adjusted from 1 V to 6 V.
The maximum output current is 4 A.
The switching frequency can be adjusted from 200 kHz to 2200 kHz.
The operating temperature range is -40°C to 125°C.
The module offers over 95% peak efficiency across the full load range.
The typical dropout voltage is 0.5 V at a 4-A load.
