| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
602,667 pcs
|
602667 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature Range |

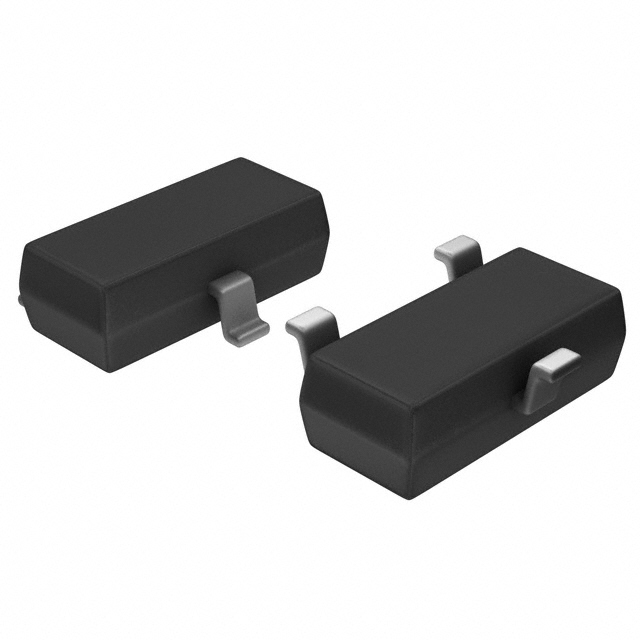

The TLVH431MIL3T from STMicroelectronics is a low-power, adjustable shunt voltage reference designed for applications requiring stable voltage references over a wide temperature range. It allows the output voltage to be set anywhere between 1.24 V and 18 V using an external resistor divider.
Key features include a low operating current of 100 µA at 25 °C, a sink current capability up to 60 mA, and a maximum temperature coefficient of 100 ppm/°C. The device offers voltage precision options of 0.25%, 0.5%, 1%, and 1.5%.
Available in compact SOT23-3L, SOT23-5L, and SOT323-6L surface-mounted packages, the TLVH431MIL3T is suitable for space-constrained designs. Its low operating current makes it an advantageous choice for battery-operated equipment and other power-restricted applications.
Typical applications include computers, battery chargers, switch-mode power supplies, data acquisition systems, and energy management.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The adjustable output voltage range is 1.24 V to 18 V.
The typical operating current is 100 µA at 25 °C.
Available voltage precision options are 0.25%, 0.5%, 1%, and 1.5%.
The operating temperature range is -40 °C to +125 °C.
Available packages are SOT23-3L, SOT23-5L, and SOT323-6L.
The maximum sink current capability is 60 mA.
The typical dynamic impedance is 0.22 Ω.
