| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,030 pcs
|
4030 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | 25+ | On Request | On Request | |
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Control | |
| Control Interface | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature Range | |
| Protection | |
| SVHC Present | |
| Supply Voltage | |
| Tape & Reel |
The Texas Instruments TAS6424EQDKQRQ1 is a high-performance, 4-channel Class-D audio amplifier designed for automotive applications. It supports digital audio inputs, including I2S and TDM formats, with sample rates up to 96 kHz.
This amplifier delivers up to 75W into a 4 ℆ load at 25V, with a power stage supply voltage range of 4.5V to 26.4V. It features enhanced EMI management and easily meets CISPR25-L5 EMC specifications. The device includes advanced load diagnostics for open load, shorted load, short-to-battery, and short-to-ground conditions, as well as line output detection.
Key features include AEC-Q100 qualification for automotive use, an operating temperature range of -40°C to +125°C, and I2C control with multiple address options. Protection features include output current limiting, load dump protection, and over-temperature protection.

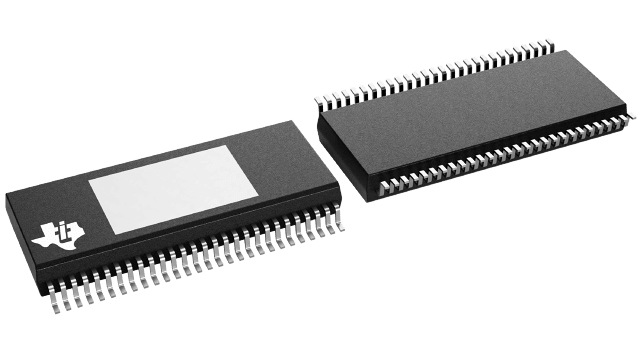

The TAS6424EQDKQRQ1 is available in a 56-pin HSSOP (DKQ) package suitable for surface mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.81 | $4.81 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TAS6424EQDKQRQ1 can deliver up to 75W into a 4 ℆ load at 25V BTL.
The power stage supply voltage range is from 4.5V to 26.4V.
It supports a maximum of 4 speaker channels.
It uses a digital input, supporting I2S or TDM formats.
The maximum switching frequency is 2.1 MHz.
The operating temperature range is -40°C to +125°C.
Yes, it is AEC-Q100 qualified for automotive applications.
