| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,216 pcs
|
6216 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| SVHC Present |
The Infineon TLE9461-3ES is a System Basis Chip (SBC) designed for automotive applications. It integrates a low-drop linear voltage regulator providing 5V for the main supply and another 5V regulator for off-board usage. The device features a high-speed CAN transceiver capable of FD communication up to 5 Mbit/s, compliant with ISO 11898-2:2016 and SAE J2284 standards, and includes CAN Partial Networking and CAN FD tolerant modes.
Key features include very low quiescent current consumption in Stop and Sleep modes, periodic cyclic wake and sense functions, and a charge pump output for reverse-polarity protection or load switching with spread spectrum modulation for EMC performance. It also offers a universal high-voltage wake input, configurable general-purpose I/O (GPIO), high-voltage measurement capabilities, fail output, configurable wake-up sources, reset and interrupt outputs, and a configurable timeout and window watchdog. Protection features include overtemperature and short circuit protection.
The TLE9461-3ES is optimized for electromagnetic compatibility (EMC) and low electromagnetic emission (EME), as well as high immunity against electromagnetic interference (EMI). It is AEC Qualified and Green Product (RoHS compliant). The device is supplied in a PG-TSDSO-24-1 package suitable for surface mounting.
Potential applications include HVAC ECUs, control panels, light control units, seat control modules, steering column systems, closure systems, gear shifters, and smart power distribution modules.
The main supply linear voltage regulator has a nominal output of 5 V.
The CAN transceiver supports FD communication up to 5 Mbit/s.
The device features very low quiescent current consumption in Stop and Sleep modes.
It is fully compliant to “Hardware Requirements for LIN, CAN and FlexRay Interfaces in Automotive Applications” Revision 1.3, 2012-05-04.

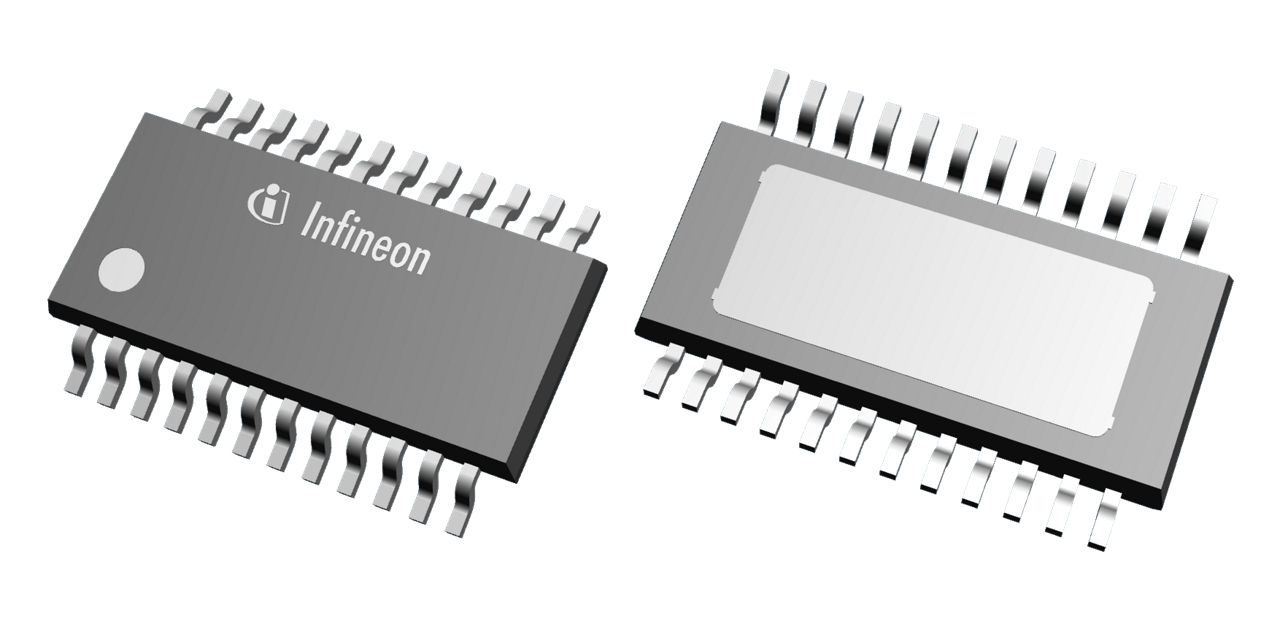

The component is supplied in a PG-TSDSO-24-1 package.
The RoHS Status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
