| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length, Right Angle | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Illumination | |
| Lead Spacing | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

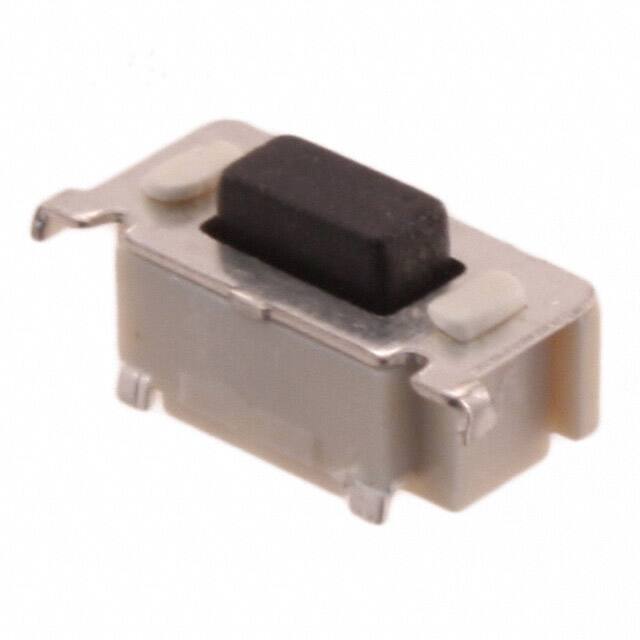

The E-Switch TL3330AF260QG is a tactile switch designed for surface mount applications with a right-angle orientation. It features a SPST-NO (Single Pole, Single Throw, Normally Open) circuit configuration.
Key electrical specifications include a contact rating of 0.05A at 12VDC. Mechanically, this switch requires an operating force of 260gf and has a rectangular button actuator. The outline dimensions are 7.80mm x 2.50mm, with an actuator length of 3.50mm for right-angle operation. It is designed for side actuation.
This non-illuminated tactile switch operates within a temperature range of -30°C to 70°C. It utilizes a gull wing termination style for secure surface mounting and is supplied in tape and reel packaging. The TL3330 series is suitable for various markets including agricultural, appliance, audio visual, automation, construction, and more.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 12VDC.
The operating force is 260gf.
It uses a surface mount, right-angle mounting type.
The termination style is Gull Wing.
The operating temperature range is -30°C to 70°C.
No, it is non-illuminated.
