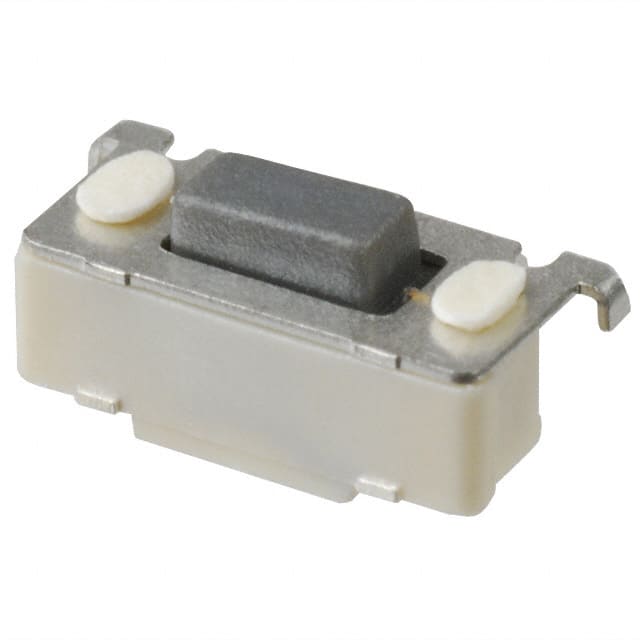

The E-Switch TL3330AF130QG is a tactile switch designed for surface mount applications requiring a right-angle orientation. It features a rectangular button actuator and gull wing termination style.
This switch operates with a SPST-NO (Single Pole Single Throw Normally Open) circuit and is rated for 0.05A at 12VDC. The operating force is 130gf, with a travel of 0.25mm ±0.15. The contact resistance is a maximum of 100 milliohms initially.
With an outline of 7.80mm x 2.50mm, the TL3330AF130QG is suitable for compact designs. It operates within a temperature range of -30°C to 70°C. The mechanical and electrical life is rated for over 50,000 cycles at 130gf.
Packaged in tape and reel with 2300 pieces per reel, this switch is designed for automated assembly processes. Its surface mount, right-angle configuration makes it ideal for space-constrained electronic devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TL3330AF130QG tactile switch is rated for 0.05A at 12VDC.
The TL3330AF130QG switch has a SPST-NO (Single Pole Single Throw Normally Open) circuit.
The operating force for the TL3330AF130QG tactile switch is 130gf.
The outline dimensions of the TL3330AF130QG tactile switch are 7.80mm x 2.50mm.
The TL3330AF130QG tactile switch operates in a temperature range of -30°C to 70°C.
The TL3330AF130QG tactile switch is packaged in tape and reel, with 2300 pieces per reel.
