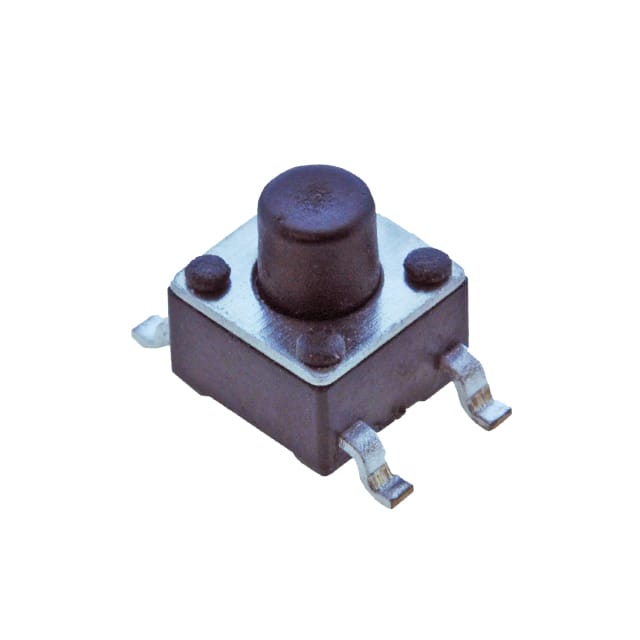

TL3305AF160QG The E-Switch TL3305AF160QG is a tactile switch with a SPST-NO circuit, designed for surface mounting. It features a 160gf operating force and a 50mA @ 12VDC rating.
