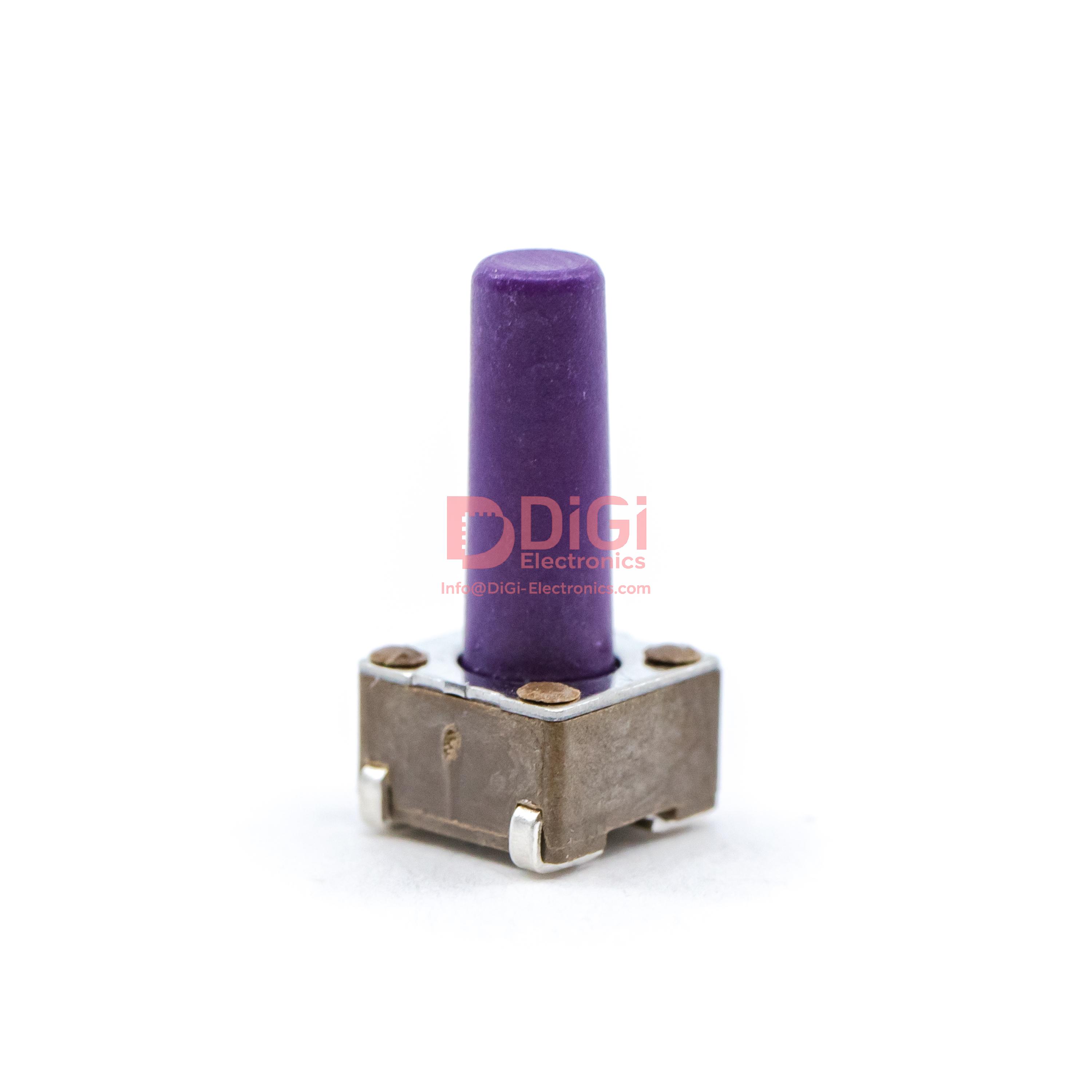

TL3301DF160QJ The E-Switch TL3301DF160QJ is a tactile switch with a SPST-NO circuit and a contact rating of 0.05A at 12VDC. It features a surface mount termination style.
Mfr Part #:

TL3301DF160QJ

Available from 1 distributors
Mfr Name: E-Switch
E-Switch
The E-Switch TL3301DF160QJ is a tactile switch with a SPST-NO circuit and a contact rating of 0.05A at 12VDC. It features a surface mount termination style.
✓ Total Stock: 5 pcs
$ Price Range: $0.52

TL3301DF160QJ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request 0910 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TL3301DF160QJ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Height off PCB, Vertical
Actuator Orientation
Actuator Type
Circuit
Contact Rating @ Voltage
Illumination
Lead Style
Mounting Type
Operating Force
Operating Temperature
Outline
Switch Function
Tape & Reel
Termination Style
View Similar Products (0)

TL3301DF160QJ Description

Short technical summary and product information.

This E-Switch TL3301DF160QJ is a tactile switch designed for various electronic applications. It features a Single Pole Single Throw Normally Open (SPST-NO) circuit configuration, capable of handling a contact rating of 0.05A at 12VDC.



The switch is designed for surface mount applications, with a J Lead termination style for secure board attachment. The actuator is top-actuated and has a height of 13.00mm off the PCB. The overall outline of the switch is 6.00mm x 6.00mm.



With an operating temperature range of -20°C to 70°C, this non-illuminated tactile switch offers reliable performance in a variety of environmental conditions. Its compact size and surface mount capability make it suitable for integration into densely populated circuit boards.

TL3301DF160QJ Quick Information

Product Type: Tactile Switch
Series: TL3301
Canonical Name: Tactile Switch SPST-NO Top Actuated Surface Mount
Subcategory: Tactile Switch

TL3301DF160QJ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TL3301DF160QJ Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

TL3301DF160QJ Features

  • SPST-NO tactile switch.
  • 0.05A at 12VDC contact rating.
  • Surface mount with J Lead termination.
  • Top actuated with 13.00mm height.
  • Operates from -20°C to 70°C.

TL3301DF160QJ Applications

  • Suitable for general purpose switching.
  • Ideal for compact electronic devices.
  • Used in consumer electronics.
  • Applicable in industrial controls.

TL3301DF160QJ FAQs

6 frequently asked questions generated from this part’s specifications.
What is the circuit configuration of the TL3301DF160QJ?

The TL3301DF160QJ has a SPST-NO circuit configuration.

What is the contact rating for this tactile switch?

The contact rating is 0.05A at 12VDC.

What is the operating force required for the TL3301DF160QJ?

The operating force is 160gf.

How is the TL3301DF160QJ mounted?

This tactile switch is designed for surface mount.

What is the operating temperature range for this switch?

The operating temperature range is -20°C to 70°C.

What is the termination style of the TL3301DF160QJ?

The termination style is J Lead.
