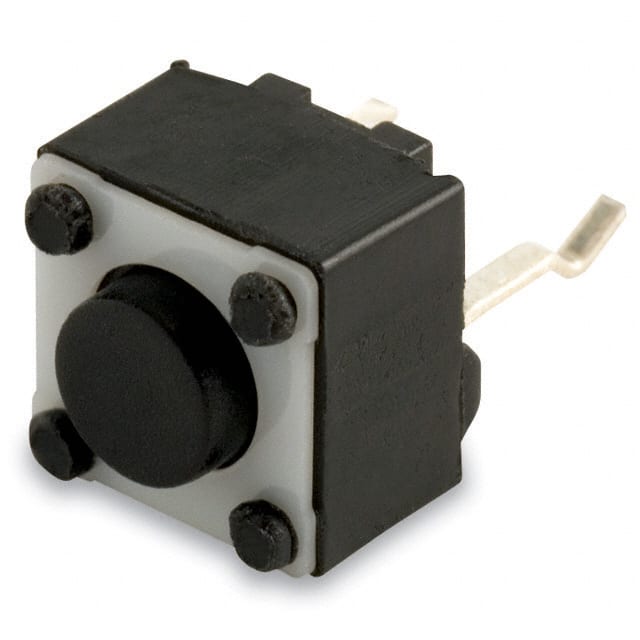

TL1150AF070Q The E-Switch TL1150AF070Q is a non-illuminated tactile switch with a Through Hole mounting style. It features an SPST-NO circuit and a 30VDC/50mA rating.
Mfr Part #:

TL1150AF070Q

Available from 1 distributors
Mfr Name: E-Switch
E-Switch
The E-Switch TL1150AF070Q is a non-illuminated tactile switch with a Through Hole mounting style. It features an SPST-NO circuit and a 30VDC/50mA rating.
✓ Total Stock: 4 pcs
$ Price Range: $0.52

TL1150AF070Q Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request 08+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TL1150AF070Q Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Height off PCB, Vertical
Actuator Orientation
Actuator Type
Circuit
Contact Form
Contact Rating @ Voltage
Current Rating
Failure Rate
Height
Illumination
Mounting Style
Mounting Type
Operating Force
Operating Temperature
Outline
Switch Function
Tape & Reel
Termination Style
Width
View Similar Products (0)

TL1150AF070Q Description

Short technical summary and product information.

The E-Switch TL1150AF070Q is a tactile switch designed for electronic applications requiring a momentary action. It features a Single Pole Single Throw Normally Open (SPST-NO) contact form and is rated for 0.05A at 30VDC.



This switch has a mechanical outline of 6.20mm x 6.20mm with a height of 6mm. The actuator is round and top-actuated, with a height of 5.70mm off the PCB. The operating force required is 0.7N (70gf).



Designed for Through Hole mounting with a straight termination style, the TL1150AF070Q operates within a temperature range of -25°C to 85°C. It is a non-illuminated component, suitable for various general-purpose switching applications where space and reliable actuation are key considerations.

TL1150AF070Q Quick Information

Product Type: Tactile Switch
Series: TL1150
Canonical Name: E-Switch TL1150AF070Q Tactile Switch
Subcategory: Tactile Switches

TL1150AF070Q Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TL1150AF070Q Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

TL1150AF070Q Features

  • SPST-NO circuit configuration.
  • Rated for 30VDC at 50mA.
  • 0.7N operating force.
  • Through Hole mounting style.
  • Non-illuminated tactile switch.

TL1150AF070Q Applications

  • Suitable for general purpose switching.
  • Ideal for compact electronic designs.
  • Used in control panel interfaces.
  • Provides momentary contact action.

TL1150AF070Q FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the TL1150AF070Q?

The TL1150AF070Q has a DC voltage rating of 30V.

What is the current rating of the TL1150AF070Q?

The current rating for the TL1150AF070Q is 50mA at 30VDC.

What is the operating force of the TL1150AF070Q tactile switch?

The operating force for the TL1150AF070Q is 0.7N.

How is the TL1150AF070Q mounted?

The TL1150AF070Q is a Through Hole mount type switch.

What is the operating temperature range for this tactile switch?

The operating temperature range for the TL1150AF070Q is -25°C to 85°C.

What is the circuit configuration of the TL1150AF070Q?

The TL1150AF070Q features a SPST-NO (Single Pole Single Throw Normally Open) circuit.
