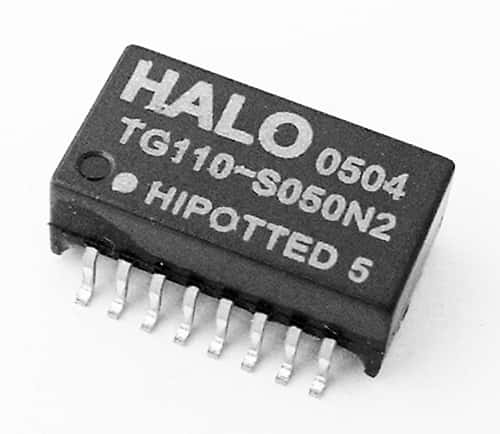

TG110-S050N2 The Halo Electronics TG110-S050N2 is an SMT Hi-potted Telecom Transformer designed for 10/100Base-TX and ATM155 applications. It offers 1500Vrms isolation and a 1.5 ohm max primary DCR.
Mfr Part #:

TG110-S050N2

Available from 5 distributors
Mfr Name: Halo Electronics Inc
Halo Electronics Inc
The Halo Electronics TG110-S050N2 is an SMT Hi-potted Telecom Transformer designed for 10/100Base-TX and ATM155 applications. It offers 1500Vrms isolation and a 1.5 ohm max primary DCR.
✓ Total Stock: 414 pcs
$ Price Range: $1.27

TG110-S050N2 Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TG110-S050N2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Crosstalk
Insertion Loss
Mounting Type
Storage Temperature
Tape & Reel
Termination Method
Turns Ratio
View Similar Products (0)

TG110-S050N2 Description

Short technical summary and product information.

The Halo Electronics TG110-S050N2 is a surface-mount, hi-potted telecom transformer suitable for 10/100Base-TX and ATM155 applications. It features a robust construction with gull wing leads for reliable solder termination.



Key electrical specifications include an isolation voltage of 1500Vrms, a maximum primary DCR of 1.5 ohms, and a minimum OCL inductance of 350uH at 100KHz and 8mA. The transformer also provides specific performance metrics such as CMR of -40dB typical, crosstalk of -40dB minimum, and insertion loss of -1.1dB maximum across various frequency ranges.



Designed for surface mounting, this transformer utilizes a SOIC package with 16 leads. Its hi-potted construction ensures enhanced reliability and performance in demanding telecom environments. The component is manufactured by Halo Electronics and carries the part number TG110-S050N2.

TG110-S050N2 Quick Information

Product Type: Telecom Transformer
Canonical Name: TG110-S050N2 SMT Hi-potted Telecom Transformer
Subcategory: Telecom Transformer

TG110-S050N2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TG110-S050N2 Estimated Pricing

Qty Low High
1+ $1.27 $1.27

Estimated market price range - modelled values for guidance only, not live distributor offers.

TG110-S050N2 Features

  • SMT Hi-potted Telecom Transformer
  • 1500Vrms isolation voltage
  • 1.5 ohm maximum primary DCR
  • 350uH minimum OCL inductance
  • Designed for 10/100Base-TX and ATM155

TG110-S050N2 Applications

  • Used in high-voltage filtering circuits
  • Suitable for coupling and decoupling applications
  • Ideal for industrial electronic systems
  • Applied in automotive electronic modules

TG110-S050N2 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the isolation voltage of the TG110-S050N2 transformer?

The isolation voltage is 1500Vrms.

What is the maximum primary DCR for the TG110-S050N2?

The maximum primary DCR is 1.5 ohms.

What is the minimum OCL inductance at 100KHz, 8mA for the TG110-S050N2?

The minimum OCL inductance is 350uH.

What are the CMR and Crosstalk specifications for the TG110-S050N2?

The CMR is -40dB typical and the Crosstalk is -40dB minimum, both measured from 0.1-100MHz.

What is the insertion loss of the TG110-S050N2 transformer?

The insertion loss is a maximum of -1.1dB from 0.1-100MHz.

What is the mounting type for the TG110-S050N2 transformer?

The mounting type is Surface Mount.
