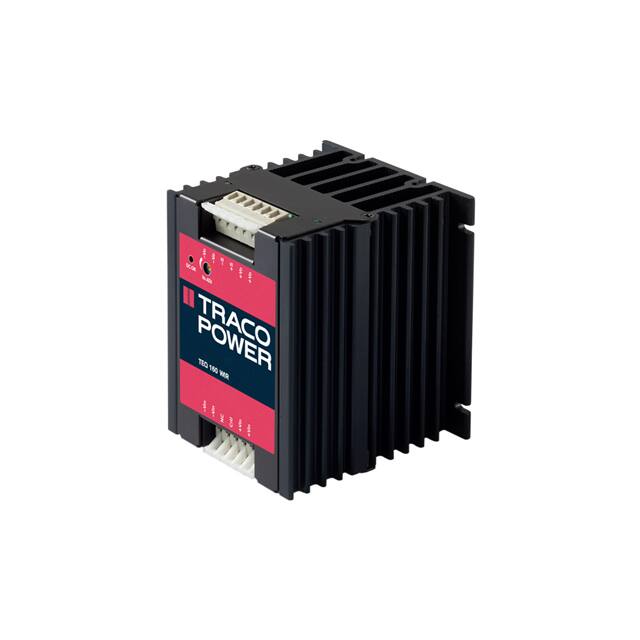

The TEQ 160-4815WIR from Traco Power is an enclosed DC DC converter module with a power rating of 156W. It is designed for demanding applications, including industrial, ITE (commercial), and railway environments, with EN 50155 approval for railway use.
This converter offers a wide 4:1 input voltage range of 19-75 VDC (48 VDC nominal) and provides a single output of 12 VDC with a maximum current of 6.5A. It boasts high efficiency up to 90% and operates reliably within an extended temperature range of -40°C to +75°C without derating, and up to +90°C with derating. The unit features excellent thermal convection and increased shock and vibration resistance.
Designed for chassis mounting, the TEQ 160-4815WIR is suitable for applications where PCB mounting is not feasible. It includes features such as output voltage trimming, remote On/Off control, and under-voltage lockout. The I/O insulation is rated at 1591 VAC, and the input filter meets EN 55022 Class A standards. The converter is built with a rugged, sealed metal case for durability.
Key electrical specifications include a 156W power output, 12V adjustable output voltage (9.6-13.2 VDC), and 6.5A maximum output current. The operating temperature range is -40°C to +75°C without derating. The unit is certified by CB, cULus, and cURus.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 19-75 VDC, with a nominal input of 48 VDC.
The output voltage is 12 VDC (adjustable from 9.6-13.2 VDC) and the maximum output current is 6.5A.
The power rating is 156W.
It operates from -40°C to +75°C without derating, and up to +90°C with derating.
It is designed for chassis mounting.
Yes, it has EN 50155 approval for railway applications.
