TEP 160-4810-CMF
Traco Power
The Traco Power TEP 160-4810-CMF is an enclosed DC/DC converter delivering 149W of power. It features chassis mounting and a wide operating temperature range.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

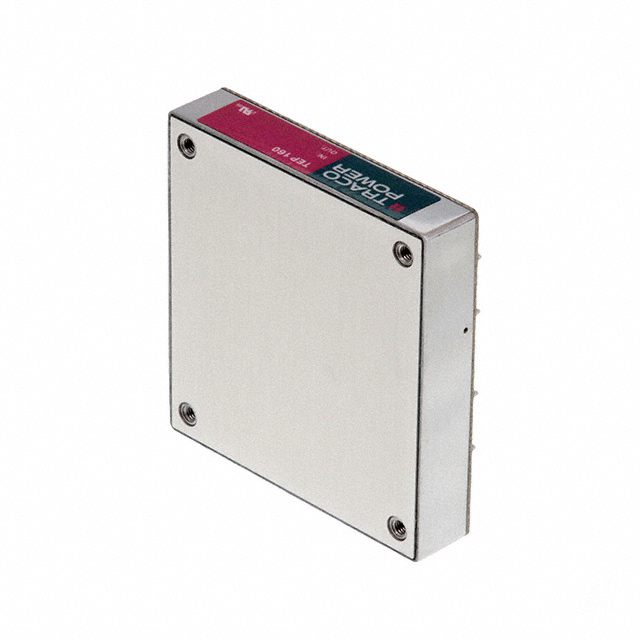

The Traco Power TEP 160-4810-CM is an enclosed DC DC converter designed for ITE (Commercial) applications. It provides a single output of 3.3V at a maximum current of 45A, resulting in a total power output of 149W. The converter operates with an input voltage range from 33V to 75V and boasts an efficiency of 89%.
This unit is designed for chassis mounting and has dimensions of 85.1mm x 61.0mm x 32.3mm. It offers an isolation voltage of 2.25 kV and operates within a temperature range of -40°C to 75°C with derating. The TEP 160 series is suitable for various industrial and commercial applications requiring reliable DC power conversion.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is from 33V to 75V.
The output voltage is 3.3V.
The maximum output current is 45A.
The efficiency is 89%.
-40°C to 75°C with derating.
Yes, it is RoHS3 compliant.
It is enclosed and chassis-mounted in a box.
