TEP 160-2413-CM
Traco Power

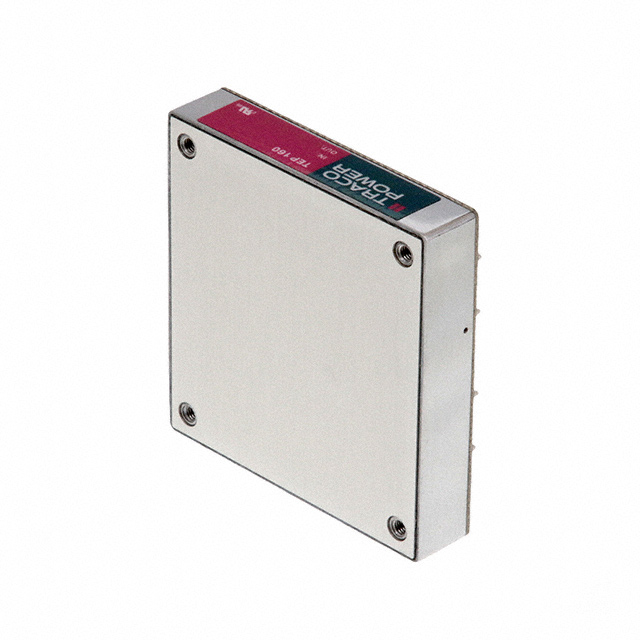

The Traco Power TEP 160-2413-CM is an enclosed DC DC converter with a 15V output and 150W power rating. It features a chassis mount design and operates within a 16.5V to 36V input range.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |
This Traco Power TEP 160-2413-CMF is an enclosed DC DC converter designed for ITE (Commercial) applications. It provides a single 15V output with a maximum current of 10A, delivering a total power of 150W.
The converter operates within an input voltage range of 16.5V to 36V and boasts an efficiency of 91%. Key electrical specifications include an isolation voltage of 2.25 kV.
Mechanically, the unit features a chassis mount type with dimensions of 85.1mm x 61.0mm x 32.3mm. The operating temperature range is -40°C to 75°C with derating. Compliance includes RoHS3 status.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 15V.
The maximum output current is 10A.
The power rating is 150W.
The input voltage range is 16.5V to 36V.
The operating temperature range is -40°C to 75°C with derating.
It uses chassis mount.
