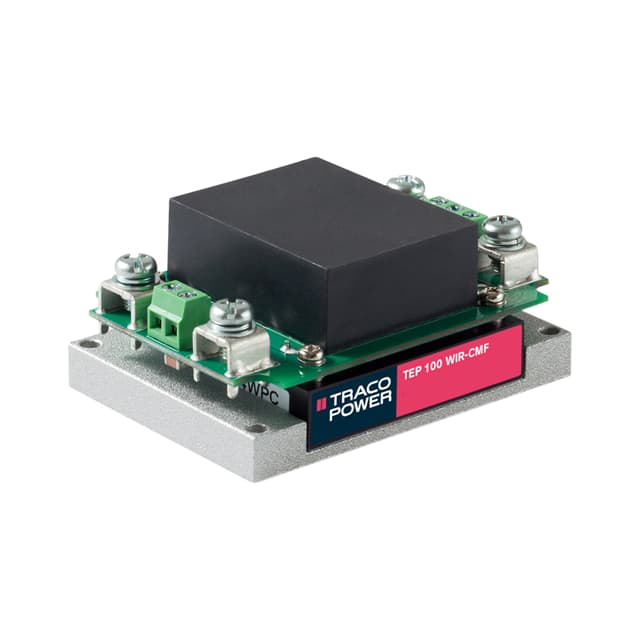

TEP 100-2415WIR-CM
Traco Power
The Traco Power TEP 100-2415WIR-CM is an enclosed DC/DC converter delivering 101W of power. It features a chassis mount and is designed for ITE Commercial and Railway applications.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |
This Traco Power TEP 100-2415WIR-CMF is an enclosed DC DC converter designed for ITE (Commercial) and Railway applications. It operates with an input voltage range of 9V to 36V and provides a stable 24V output at a maximum current of 4.2A, delivering 101W of power. The converter boasts an efficiency of 90% and offers 2.25 kV of isolation voltage. Its operating temperature range is -40°C to 75°C with derating.
The unit is designed for chassis mounting, with dimensions of 85.1mm x 61.0mm x 33.8mm. It is classified under the TEP 100WIRCMF series and is suitable for demanding environments. Compliance includes RoHS3 status and a Moisture Sensitivity Level of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 9V to 36V.
The output voltage is 24V and the maximum output current is 4.2A.
The power rating is 101W.
The efficiency is 90%.
The operating temperature range is -40°C to 75°C with derating.
The dimensions are 85.1mm x 61.0mm x 33.8mm.
The isolation voltage is 2.25 kV.
