| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,370 pcs
|
1370 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| ESD Protection | |
| Industrial Grade | |
| Interface | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage |
The TDA8035HN/C2/S1QL from NXP Semiconductors is a cost-efficient integrated contact smart card reader IC. It is designed to offer a high level of security for smart cards, incorporating features like current limitation, short-circuit detection, ESD protection, and supply supervision.
This IC supports multiple smart card supply voltages including 5 V, 3 V, and 1.8 V, with a main supply voltage range of 2.7 V to 5.5 V. It features an Analog interface and is housed in a 32-HVQFN (5x5) package, suitable for surface mounting.
Key features include thermal and short-circuit protection on all card contacts, enhanced card-side ESD protection (> 8 kV), and very low power consumption in deep shutdown mode. It also supports an external clock input up to 26 MHz and card clock generation up to 20 MHz.
Applications for the TDA8035HN/C2/S1QL include Pay TV, electronic payment systems, identification, and IC card readers for banking.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.39 | $6.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TDA8035HN/C2/S1QL supports 5 V, 3 V, and 1.8 V smart card supply voltages.
The operating supply voltage range is 2.7 V to 5.5 V.
The TDA8035HN/C2/S1QL features an Analog interface.

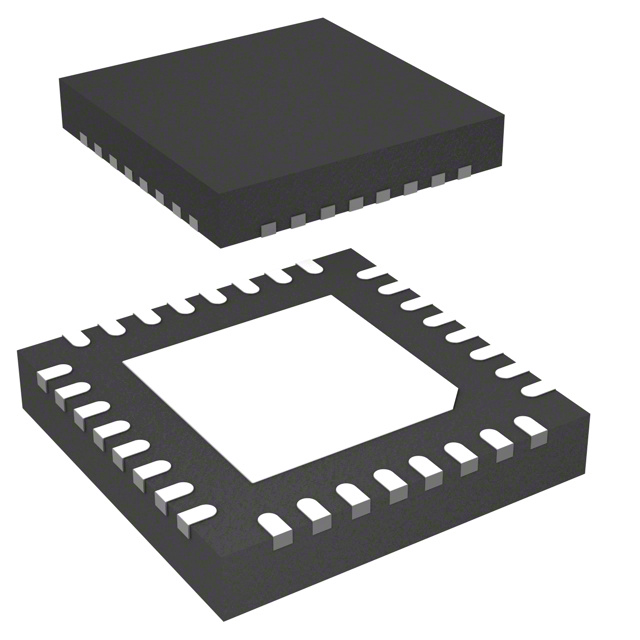

The package type is 32-VFQFN Exposed Pad, also referred to as 32-HVQFN (5x5).
The TDA8035HN/C2/S1QL is a surface mount device.
It offers enhanced card-side ESD protection of greater than 8 kV.
The current consumption in deep shutdown mode is a maximum of 0.1 µA.
