| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

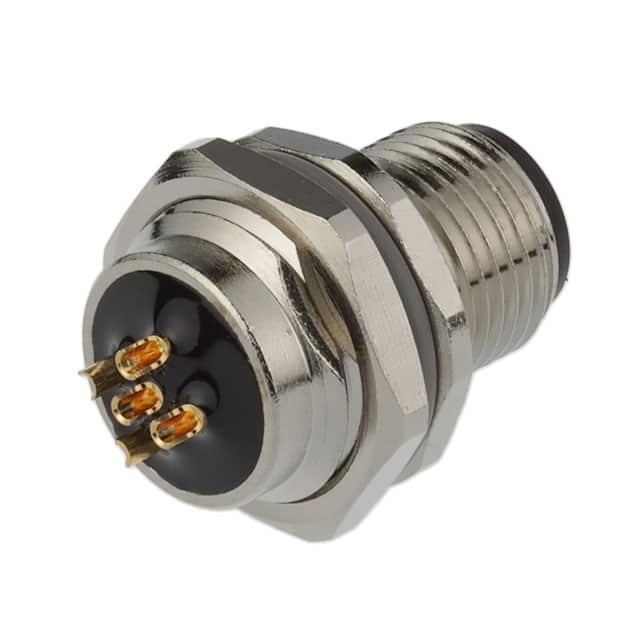

The T4132012051-000 is a circular connector receptacle from TE Connectivity featuring 5 male pins in an M12-5 shell size. It is designed for panel mount installation with a bulkhead rear side nut and uses solder cup termination for secure wire connections. The connector is rated for 4A continuous current at 60V and operates over a temperature range of -40°C to 85°C. It offers IP67 ingress protection against dust and temporary water immersion. The metal shell is made of copper alloy with a nickel finish, and the contacts are gold-plated for reliable conductivity. The insulator material meets UL94 V-0 flammability rating. This unshielded connector is suitable for industrial automation, sensor, and actuator applications requiring a robust M12 interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.92 | $7.92 |
| 10+ | $7.54 | $7.54 |
| 25+ | $7.07 | $7.07 |
| 50+ | $6.82 | $6.82 |
| 100+ | $6.38 | $6.38 |
| 200+ | $5.74 | $5.74 |
| 600+ | $5.43 | $5.43 |
| 1,000+ | $5.26 | $5.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions (male pins).
Rated 4A at 60V.
Panel mount with bulkhead rear side nut.
IP67 - dust tight and waterproof.
-40°C to 85°C.
Solder cup.
Copper alloy shell with nickel finish.
