| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
133 pcs
|
133 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

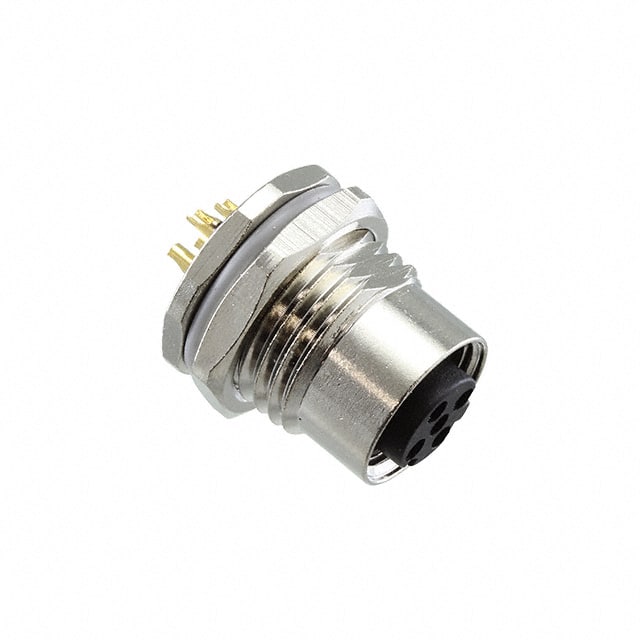

The TE Connectivity T4131012051-000 is an M12-5 circular connector plug designed for reliable panel-mount applications. It features 5 female sockets with gold-plated contacts, ensuring low resistance and corrosion resistance. The connector is rated for 4A current and 60V voltage, with an operating temperature range of -40°C to 85°C.
The connector uses a threaded fastening mechanism for secure mating and is unshielded. It has a solder cup termination style, simplifying field installation. The metal shell is made of copper alloy with nickel finish, providing durability. The connector meets IP67 ingress protection, making it suitable for dusty and wet environments. The material flammability rating is UL94 V-0.
This connector is ideal for industrial automation, sensor connectivity, and harsh environment applications. The panel mount feature includes a bulkhead front side nut for easy installation. The M12-5 shell size is common in M12 circular connector systems, ensuring compatibility with standard mating connectors.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.88 | $8.88 |
| 10+ | $7.94 | $7.94 |
| 25+ | $7.45 | $7.45 |
| 50+ | $6.96 | $6.96 |
| 100+ | $6.68 | $6.68 |
| 250+ | $6.30 | $6.30 |
| 500+ | $6.07 | $6.07 |
| 1,000+ | $5.78 | $5.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 5 positions.
The current rating is 4 A.
The voltage rating is 60 V.
It is panel mount with a bulkhead front side nut.
IP67 - dust tight and waterproof.
Solder cup termination.
No, it is unshielded.
