| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Voltage Rating |

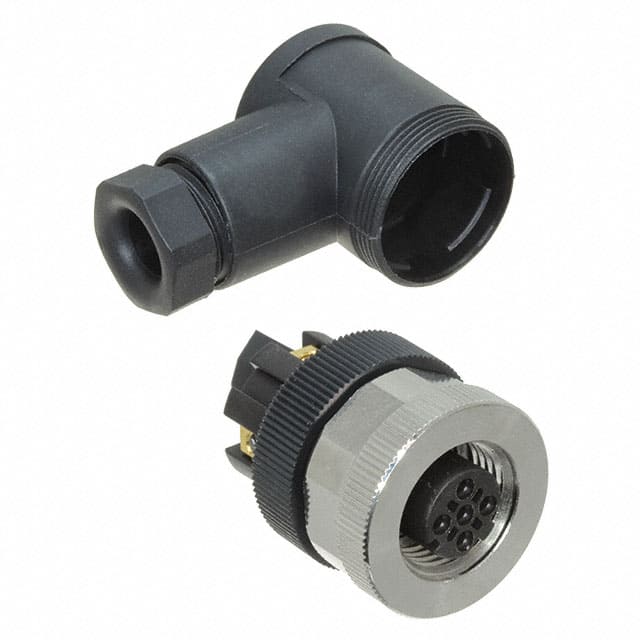

The T4112002041-000 is a circular connector plug from TE Connectivity, part of the M12-4 shell size family. This plug features 4 female socket positions with gold-plated contacts for reliable signal integrity. The connector is terminated via screw terminals, making it suitable for field installation or servicing. It offers a free-hanging, right-angle mounting style with a threaded coupling nut for secure mating. The metal shell is constructed from brass with a nickel finish, providing durability and corrosion resistance. The connector is rated IP67 for dust-tight and waterproof protection, ideal for demanding industrial environments. Electrical ratings include 250V and 4A, with an operating temperature range of -40°C to 85°C. The cable opening accommodates 6.00mm to 8.00mm cable diameters. Additional features include a backshell and coupling nut for strain relief and secure connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.59 | $8.59 |
| 10+ | $7.45 | $7.45 |
| 25+ | $7.05 | $7.05 |
| 50+ | $6.71 | $6.71 |
| 100+ | $6.39 | $6.39 |
| 250+ | $5.84 | $5.84 |
| 500+ | $5.63 | $5.63 |
| 1,000+ | $5.25 | $5.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
4 A.
250 V.
Free hanging (in-line), right angle, with screw termination.
IP67 - dust tight and waterproof.
-40°C to 85°C.
M12-4.
