Mfr Part #:

SUM110N05-06L-E3

Mfr Name: VBsemi

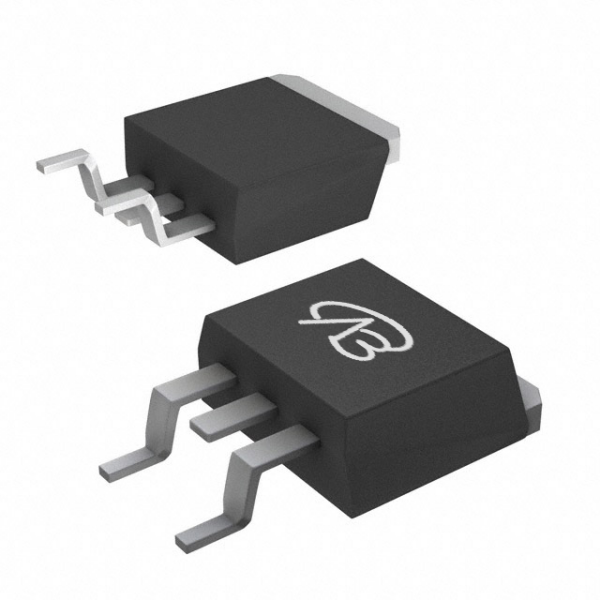

The VBsemi SUM110N05-06L-E3 is an N-Channel MOSFET with a 60V drain-source breakdown voltage and 150A continuous drain current. It is supplied in a TO-263 SMD package.

✓ Total Stock: 2,135 pcs

SUM110N05-06L-E3 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	2,135 pcs On Request	2135 pcs	On Request	1	On Request	On Request	19+	On Request	On Request

SUM110N05-06L-E3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	VBsemi
Lead Style	Gull Wing
Mounting Type	SMD mount

View Similar Products (0)

SUM110N05-06L-E3 Description

Short technical summary and product information.

The VBsemi SUM110N05-06L-E3 is an N-Channel MOSFET designed for industrial applications. It features a drain-source breakdown voltage of 60V and a continuous drain current rating of 150A.

The MOSFET exhibits a low on-state resistance of 4mΩ at 10V gate-source voltage, contributing to efficient power handling. The gate-source threshold voltage is 3V, and the maximum gate-source voltage is ±20V.

This component is housed in a TO-263 SMD package, suitable for surface-mount designs. The operating temperature range is -55℃ to 150℃, providing robustness in various environmental conditions.

SUM110N05-06L-E3 Quick Information

Product Type: MOSFET

Canonical Name: VBsemi SUM110N05-06L-E3 N-Channel MOSFET

Subcategory: N-Channel

SUM110N05-06L-E3 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

SUM110N05-06L-E3 Features

N-Channel MOSFET with 60V breakdown voltage.
150A continuous drain current capability.
Low 4mΩ on-state resistance at 10V.
Operates from -55℃ to 150℃.
TO-263 SMD package for surface mounting.

SUM110N05-06L-E3 Applications

Suitable for industrial power applications.
Used in high-current switching circuits.
Ideal for power management designs.
Component for robust thermal environments.

SUM110N05-06L-E3 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the drain-source breakdown voltage of the SUM110N05-06L-E3?

The drain-source breakdown voltage is 60V.

What is the continuous drain current for the SUM110N05-06L-E3?

The continuous drain current is 150A.

What is the on-state resistance of this MOSFET?

The on-state resistance is 4mΩ at 10V gate-source voltage.

What is the gate-source threshold voltage?

The gate-source threshold voltage is 3V.

What is the operating temperature range?

The operating temperature range is -55℃ to 150℃.

What package type is the SUM110N05-06L-E3 in?

It is in a TO-263 SMD package.
