| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

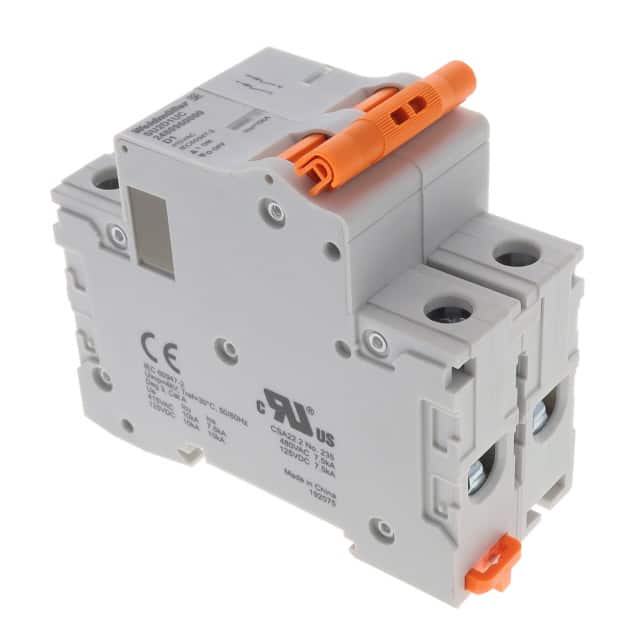

The Weidmüller SU2D1UC is a thermal magnetic miniature circuit breaker designed for reliable circuit protection. It offers a 1A current rating and can handle up to 480VAC or 125VDC.
This 2-pole breaker is suitable for DIN rail mounting, making it easy to integrate into industrial control panels and electrical enclosures. Its thermal magnetic trip mechanism provides protection against overcurrent and short circuits.
The SU2D1UC is approved by multiple agencies including CE, CSA C22.2 No 5, CSA C22.2 No 235, TUV, UL1077, and VDE, ensuring compliance with various safety standards. It is part of the SUxxxUC series, designed for supplementary protection applications.
Key specifications include a 1A current rating, 480V AC maximum voltage, and 125V DC maximum voltage. The breaker features a lever actuator and no illumination. It is RoHS3 compliant, has an MSL of 1, and is REACH unaffected.
1A.
480VAC and 125VDC.
2.
Thermal magnetic.
DIN Rail.
CE, CSA C22.2 No 5, CSA C22.2 No 235, TUV, UL1077, VDE.
Lever.
