| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Industrial Grade | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Voltage Rating |

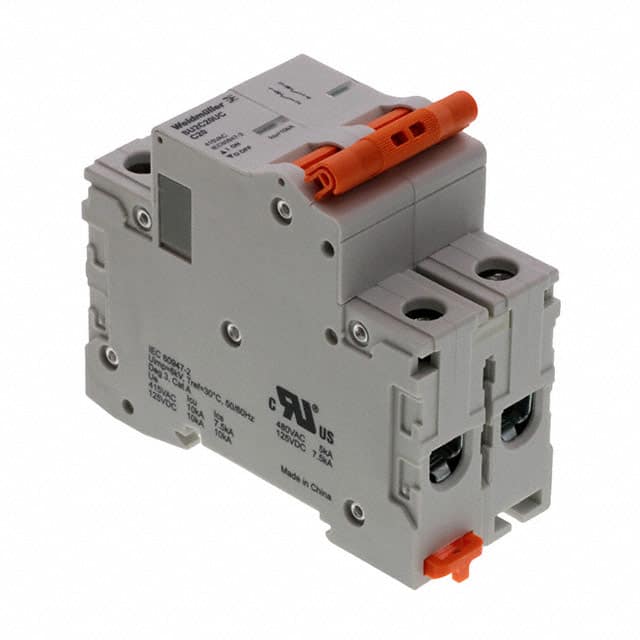

The Weidmüller SU2C20UC is a thermal magnetic miniature circuit breaker designed for AC/DC applications. It offers a 20A current rating and a 480V voltage rating across its two poles. This breaker is suitable for DIN rail mounting, making it convenient for panel installations.
Key specifications include a thermal magnetic trip type and a lever actuator. It is recognized under UL1077, CSA C22.2 No 5, CSA C22.2 No 235, TUV, and VDE standards, indicating its suitability for various industrial and commercial applications. The RoHS3 compliant status and MSL 1 rating further support its use in diverse electronic systems.
This circuit breaker is part of the BR/SUxxxUC series, which provides reliable wire and cable protection against application or device malfunctions. Its robust construction and adherence to multiple safety standards make it a dependable choice for protecting electrical circuits.
The SU2C20UC circuit breaker has a current rating of 20A.
The voltage rating for the SU2C20UC circuit breaker is 480V.
The SU2C20UC circuit breaker has 2 poles.
The SU2C20UC is a Thermal Magnetic circuit breaker.
The SU2C20UC circuit breaker is designed for DIN Rail mounting.
The SU2C20UC circuit breaker is approved by CE, CSA C22.2 No 5, CSA C22.2 No 235, TUV, UL1077, and VDE.
