| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

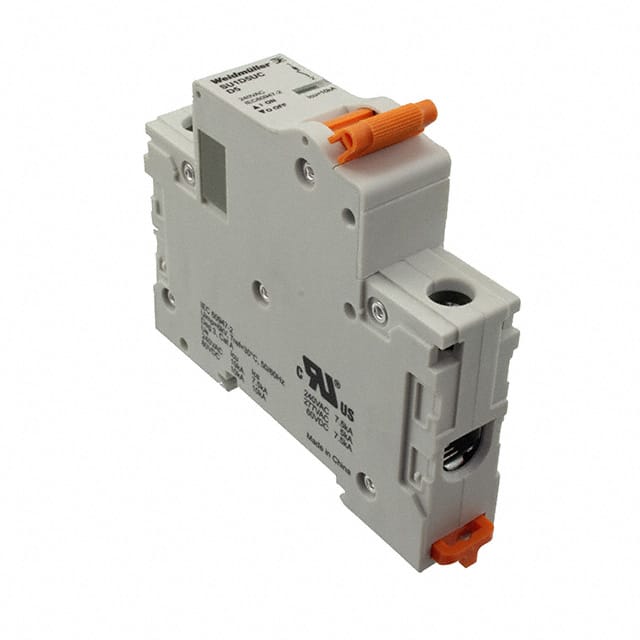

The Weidmüller SU1D5UC is a single-pole miniature circuit breaker designed for AC/DC applications. It utilizes a thermal magnetic tripping mechanism and is rated for a current of 5A and a voltage of 277V.
This circuit breaker is designed for DIN rail mounting, making it suitable for panel installations. It features a lever actuator for easy operation. The SU1D5UC is approved by various agencies including CE, CSA C22.2 No 5, CSA C22.2 No 235, TUV, UL1077, and VDE, indicating its suitability for a range of industrial and commercial applications.
As part of the BR/SUxxxUC series, this component is engineered for branch circuit protection and supplementary protection, helping to safeguard wires and cables from device malfunctions. Its RoHS3 compliant status and MSL 1 rating suggest it is suitable for standard electronic assembly processes.
5A
277V
1 pole
Thermal magnetic
DIN Rail
CE, CSA C22.2 No 5, CSA C22.2 No 235, TUV, UL1077, VDE
No, it has a non-illuminated lever actuator.
