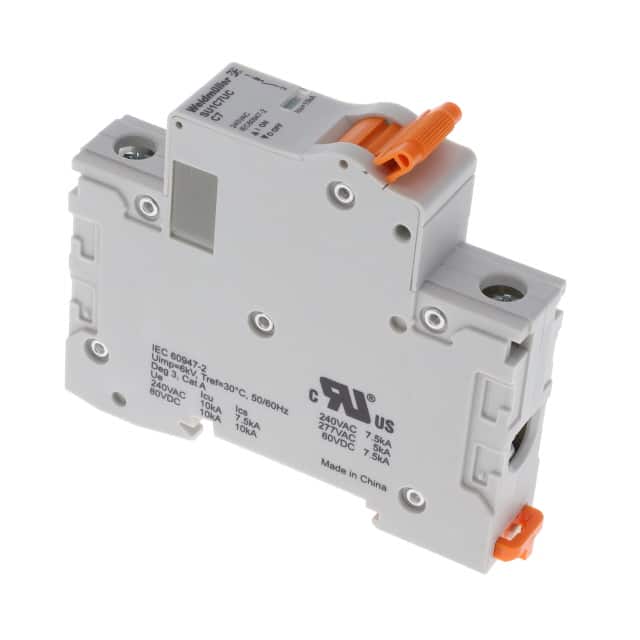

The Weidmüller SU1C7UC is a single-pole, thermal magnetic miniature circuit breaker designed for supplementary protection applications, adhering to UL1077 standards. It offers a current rating of 7A and a voltage rating of 277V AC, making it suitable for various electrical protection needs.
This circuit breaker is designed for easy installation on a DIN rail, a common mounting standard in industrial and control panel applications. Its thermal magnetic trip mechanism provides reliable protection against overcurrent and short circuits. The SU1C7UC is approved by multiple agencies including CE, CSA, TUV, UL1077, and VDE, ensuring compliance with international safety standards.
Key specifications include a 1-pole configuration and a lever actuator for manual operation. The series is part of the SUxxxUC line, known for its application in supplementary protection. The product is RoHS3 compliant, indicating adherence to environmental regulations regarding hazardous substances.
The Weidmüller SU1C7UC circuit breaker has a current rating of 7A.
The AC voltage rating for the SU1C7UC circuit breaker is 277V.
The SU1C7UC circuit breaker has 1 pole.
The SU1C7UC uses a thermal magnetic breaker mechanism.
The SU1C7UC circuit breaker is designed for DIN rail mounting.
The SU1C7UC circuit breaker is approved by CE, CSA C22.2 No 5, CSA C22.2 No 235, TUV, UL1077, and VDE.
Yes, the SU1C7UC circuit breaker is RoHS3 compliant.
