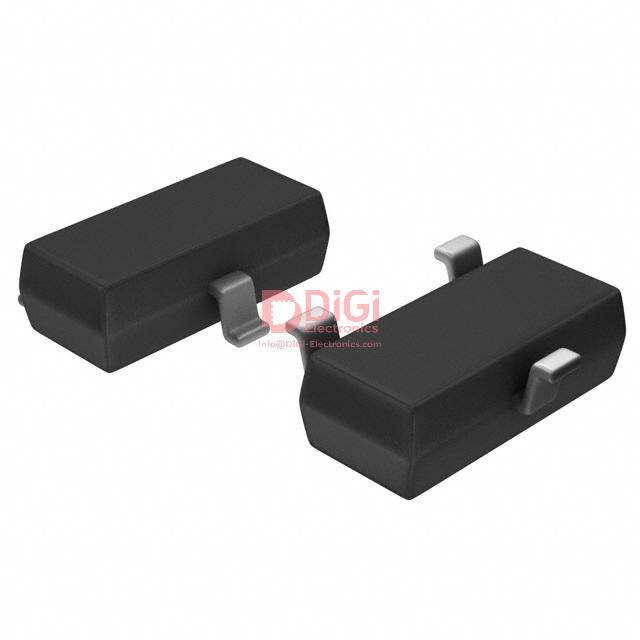

STR2N2VH5 The STMicroelectronics STR2N2VH5 is an N-Channel MOSFET with a 20V drain-source voltage and a continuous drain current of 2.3A. It is designed for surface mounting in a SOT-23-3 package.
Mfr Part #:

STR2N2VH5

Available from 2 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics STR2N2VH5 is an N-Channel MOSFET with a 20V drain-source voltage and a continuous drain current of 2.3A. It is designed for surface mounting in a SOT-23-3 package.
✓ Total Stock: 52,020 pcs
$ Price Range: $2.56

STR2N2VH5 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
33,000 pcs
On Request
33000 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
19,020 pcs
On Request
19020 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STR2N2VH5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

STR2N2VH5 Description

Short technical summary and product information.

The STMicroelectronics STR2N2VH5 is an N-Channel MOSFET belonging to the STripFET™ V series. It features a drain-to-source voltage (Vdss) of 20V and can handle a continuous drain current (Id) of 2.3A at 25°C. The MOSFET has a maximum on-resistance (Rds On) of 30mOhm at 2A and 4.5V Vgs, and a gate threshold voltage (Vgs(th)) of 700mV at 250µA.



Designed for surface mounting, this component comes in a SOT-23-3 package. Its operating temperature range is -55°C to 150°C (TJ). Key electrical characteristics include an input capacitance (Ciss) of 367 pF at 16V Vds and a gate charge (Qg) of 4.6 nC at 4.5V Vgs. The maximum gate-source voltage (Vgs) is ±8V, and it has a power dissipation of 350mW (Tc).



This MOSFET is suitable for various electronic applications requiring efficient switching and power management. Its compact SOT-23-3 package makes it ideal for space-constrained designs.

STR2N2VH5 Quick Information

Product Type: MOSFET
Series: STripFET™ V
Canonical Name: STMicroelectronics STR2N2VH5 N-Channel MOSFET
Subcategory: Single FETs, MOSFETs

STR2N2VH5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STR2N2VH5 Estimated Pricing

Qty Low High
1+ $2.56 $2.56

Estimated market price range - modelled values for guidance only, not live distributor offers.

STR2N2VH5 Features

  • N-Channel MOSFET with 20V drain-source voltage.
  • Continuous drain current of 2.3A at 25°C.
  • Maximum on-resistance of 30mOhm at 2A, 4.5V.
  • Surface mount SOT-23-3 package.
  • Wide operating temperature range of -55°C to 150°C.

STR2N2VH5 Applications

  • Suitable for power switching applications.
  • Ideal for space-constrained designs.
  • Used in general electronic circuits.
  • Efficient power management solutions.

STR2N2VH5 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage for the STR2N2VH5 MOSFET?

The drain-source voltage (Vdss) for the STR2N2VH5 MOSFET is 20V.

What is the continuous drain current of the STR2N2VH5?

The continuous drain current (Id) for the STR2N2VH5 is 2.3A at 25°C.

What is the maximum on-resistance of the STR2N2VH5?

The maximum on-resistance (Rds On) for the STR2N2VH5 is 30mOhm when Id is 2A and Vgs is 4.5V.

What is the package type for the STR2N2VH5?

The STR2N2VH5 is available in a SOT-23-3 package for surface mounting.

What is the operating temperature range of the STR2N2VH5?

The operating temperature range for the STR2N2VH5 is -55°C to 150°C (TJ).
