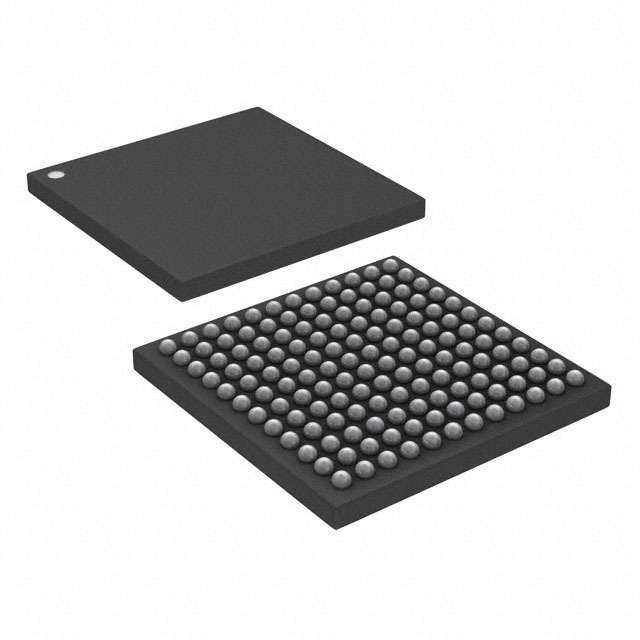

STM32L4R9ZIJ6 The STMicroelectronics STM32L4R9ZIJ6 is a 32-bit microcontroller featuring 2MB of FLASH program memory and 640KB of RAM. It operates at speeds up to 120MHz.
Mfr Part #:

STM32L4R9ZIJ6

Available from 3 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STMicroelectronics STM32L4R9ZIJ6 is a 32-bit microcontroller featuring 2MB of FLASH program memory and 640KB of RAM. It operates at speeds up to 120MHz.
✓ Total Stock: 5,337 pcs
$ Price Range: $6.40

STM32L4R9ZIJ6 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
3,121 pcs
On Request
3121 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
2,200 pcs
On Request
2200 pcs On Request 1 On Request On Request 20+ On Request On Request
Seba Components ✓
Non-Authorised Inventory information
16 pcs
On Request
16 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STM32L4R9ZIJ6 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Frequency
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Voltage
View Similar Products (0)

STM32L4R9ZIJ6 Description

Short technical summary and product information.

This STMicroelectronics STM32L4R9ZIJ6 is a high-performance 32-bit microcontroller based on the ARM Cortex-M4 core. It offers 2MB of FLASH program memory and 640KB of RAM, running at a maximum frequency of 120MHz.



The device supports a wide operating voltage range of 1.71V to 3.6V and operates within a temperature range of -40°C to 85°C (TA). It includes various peripherals such as Brown-out Detect/Reset, DMA, LCD, POR, PWM, and WDT, along with data converters including 16-channel 12-bit A/D and 2-channel 12-bit D/A.



Connectivity options include CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, SAI, SPI, UART/USART, and USB OTG. The microcontroller is housed in a 144-UFBGA package and is designed for surface mount applications. It features 112 I/O lines and an internal oscillator type.

STM32L4R9ZIJ6 Quick Information

Product Type: Microcontroller
Canonical Name: STM32L4R9ZIJ6 Microcontroller
Subcategory: Embedded

STM32L4R9ZIJ6 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STM32L4R9ZIJ6 Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

STM32L4R9ZIJ6 Features

  • 32-bit ARM Cortex-M4 core processor.
  • 2MB FLASH program memory and 640KB RAM.
  • Operates at 120MHz with internal oscillator.
  • Wide voltage range from 1.71V to 3.6V.
  • 144-UFBGA package for surface mounting.

STM32L4R9ZIJ6 Applications

  • Suitable for embedded control applications.
  • Supports various communication interfaces.
  • Ideal for low-power designs.
  • Features extensive peripheral set.

STM32L4R9ZIJ6 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the STM32L4R9ZIJ6?

The operating temperature range is -40°C to 85°C (TA).

What package type is the STM32L4R9ZIJ6 available in?

The STM32L4R9ZIJ6 is available in a 144-UFBGA package.

What is the program memory size of the STM32L4R9ZIJ6?

The program memory size is 2MB (2M x 8) of FLASH.

What is the RAM size for this microcontroller?

The RAM size is 640K x 8.
