STM32L4P5AGI6 The STM32L4P5AGI6 is a 32-bit microcontroller from STMicroelectronics featuring an ARM Cortex-M4 core. It offers 1MB of Flash memory and operates at speeds up to 120MHz.
Mfr Part #:

STM32L4P5AGI6

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The STM32L4P5AGI6 is a 32-bit microcontroller from STMicroelectronics featuring an ARM Cortex-M4 core. It offers 1MB of Flash memory and operates at speeds up to 120MHz.
✓ Total Stock: 1,496 pcs
$ Price Range: $6.40

STM32L4P5AGI6 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
1,496 pcs
On Request
1496 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

STM32L4P5AGI6 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Lead Spacing
Mounting Type
Number of I
Number of I/O
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Storage Temperature
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

STM32L4P5AGI6 Description

Short technical summary and product information.

This STM32L4P5AGI6 microcontroller from STMicroelectronics is built around a 32-bit ARM Cortex-M4 core, providing robust processing capabilities for embedded systems. It features 1MB of Flash program memory and 320KB of RAM, enabling complex applications.



The device operates at a speed of 120MHz and supports a wide range of connectivity options including CANbus, I²C, SPI, and USB OTG. It is equipped with peripherals such as DMA, PWM, and WDT, enhancing its functionality for various tasks.

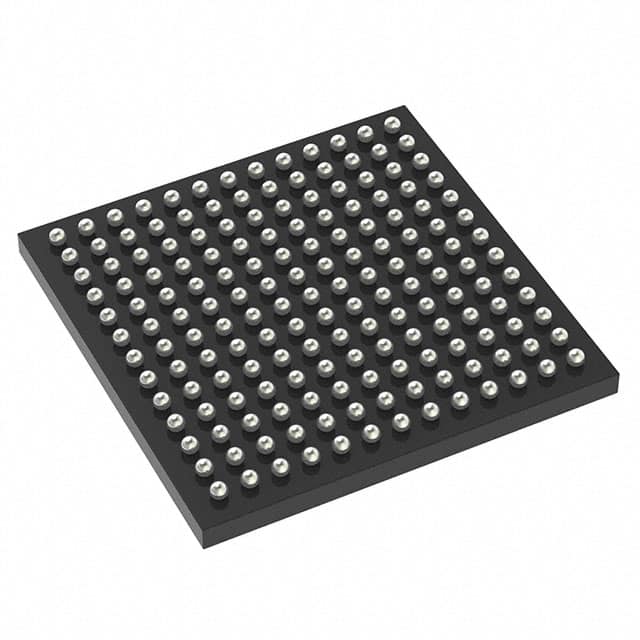

Packaged in a 169-UFBGA (7x7) surface-mount case, the STM32L4P5AGI6 is designed for efficient integration into printed circuit boards. It operates within a voltage supply range of 1.71V to 3.6V and has an operating temperature range of -40°C to 85°C (TA).



Environmental compliance includes RoHS3 status. The microcontroller also features integrated data converters, with 16x12-bit A/D and 2x12-bit D/A capabilities, making it suitable for applications requiring analog signal processing.

STM32L4P5AGI6 Quick Information

Product Type: Microcontroller
Series: STM32L4
Canonical Name: STM32L4P5AGI6 Microcontroller
Subcategory: Embedded

STM32L4P5AGI6 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

STM32L4P5AGI6 Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

STM32L4P5AGI6 Features

  • 32-bit ARM Cortex-M4 core processor.
  • 1MB Flash program memory size.
  • 320KB RAM size.
  • 120MHz operating speed.
  • 169-UFBGA surface mount package.

STM32L4P5AGI6 Applications

  • Suitable for embedded control systems in IoT devices.
  • Ideal for motor control and automation applications.
  • Used in portable medical and health monitoring devices.
  • Applicable in industrial automation and sensor interfaces.
  • Suitable for wearable and battery-powered electronics.

STM32L4P5AGI6 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the program memory size of the STM32L4P5AGI6?

The program memory size is 1MB (1M x 8).

What is the RAM size for the STM32L4P5AGI6 microcontroller?

The RAM size is 320K x 8.

What is the operating voltage range for the STM32L4P5AGI6?

The operating voltage range is 1.71V to 3.6V.

What is the operating temperature of the STM32L4P5AGI6?

The operating temperature is -40°C to 85°C (TA).

What type of package is the STM32L4P5AGI6 in?

The package type is 169-UFBGA.

What are the data converter specifications for this microcontroller?

It features 16x12b A/D converters and 2x12b D/A converters.

What is the ECCN for the STM32L4P5AGI6?

The ECCN is EAR99.
