| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The STMicroelectronics STM32H747ZIY6TR is a high-performance 32-bit dual-core microcontroller designed for demanding embedded applications. It features an ARM Cortex-M4/M7 core, capable of operating at speeds up to 240MHz and 480MHz.
This microcontroller offers 2MB of FLASH program memory and 1MB of RAM, providing ample space for complex code and data. It includes a wide range of peripherals such as CANbus, Ethernet, I²C, SPI, and USB OTG, along with data converters including A/D and D/A.

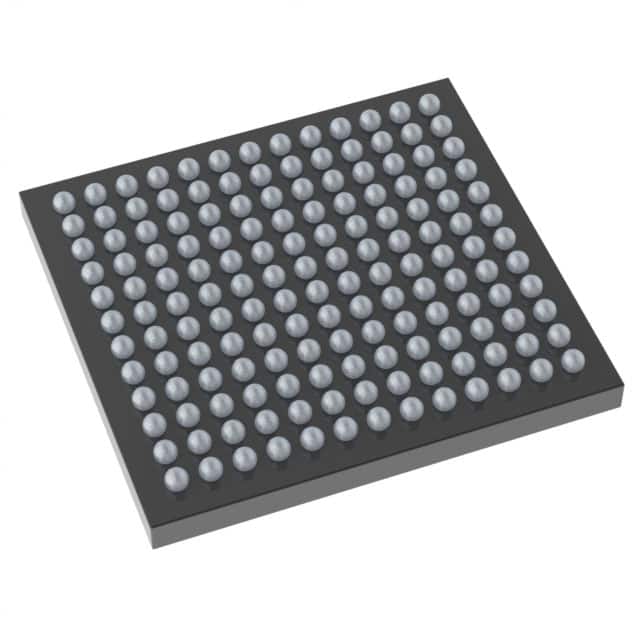

The STM32H747ZIY6TR is supplied in a 156-WLCSP package with surface mount mounting type. It operates within a temperature range of -40°C to 85°C (TA) and requires a supply voltage between 1.62V and 3.6V.
Key features include its dual-core architecture, extensive connectivity options, and integrated peripherals, making it suitable for advanced control systems, IoT devices, and signal processing applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The program memory size is 2MB (2M x 8).
The RAM size is 1M x 8.
The operating voltage is 1.62V to 3.6V.
The operating temperature is -40°C to 85°C (TA).
It is supplied in a 156-UFBGA, WLCSP package.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
