| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
720 pcs
|
720 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Lead Style | |
| Mounting Type | |
| Type | |
| Voltage |

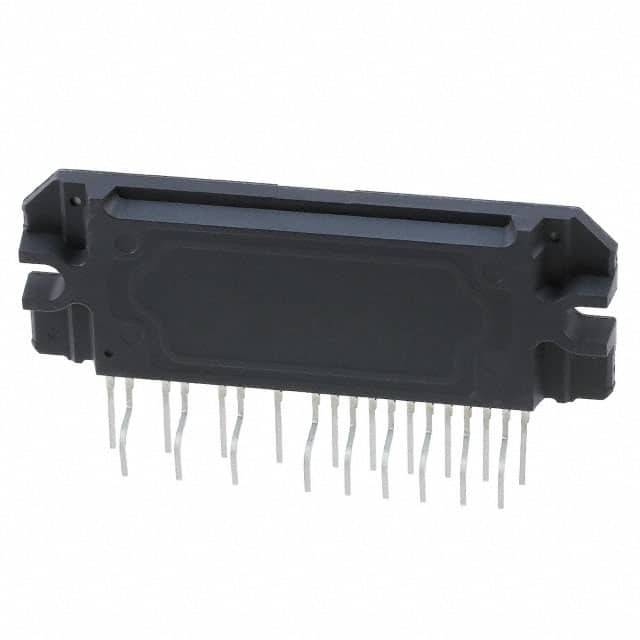

The STK541UC62K-E from On Semiconductor is an Intelligent Power Module (IPM) belonging to the Power Driver Modules category. This component is designed for robust performance in 3 Phase electrical systems.
Key electrical specifications include a current handling capability of 10 Amperes and a high voltage rating of 2000Vrms. The module utilizes IGBT technology for efficient power switching.
Mechanically, the STK541UC62K-E features a Through Hole mounting type, making it suitable for integration into various PCB designs. The package is described as a 23-PowerSIP Module with 19 leads and formed leads, providing a secure and reliable connection.
Environmental compliance data indicates RoHS3 compliance, an MSL rating of 1, and REACH unaffected status. These attributes are important considerations for manufacturing and regulatory adherence.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The STK541UC62K-E has a current rating of 10 A.
The voltage rating for the STK541UC62K-E is 2000Vrms.
The STK541UC62K-E is mounted using the Through Hole method.
The STK541UC62K-E is an IGBT type component.
The package for the STK541UC62K-E is a 23-PowerSIP Module, 19 Leads, Formed Leads.
The STK541UC62K-E has a 3 Phase configuration.
