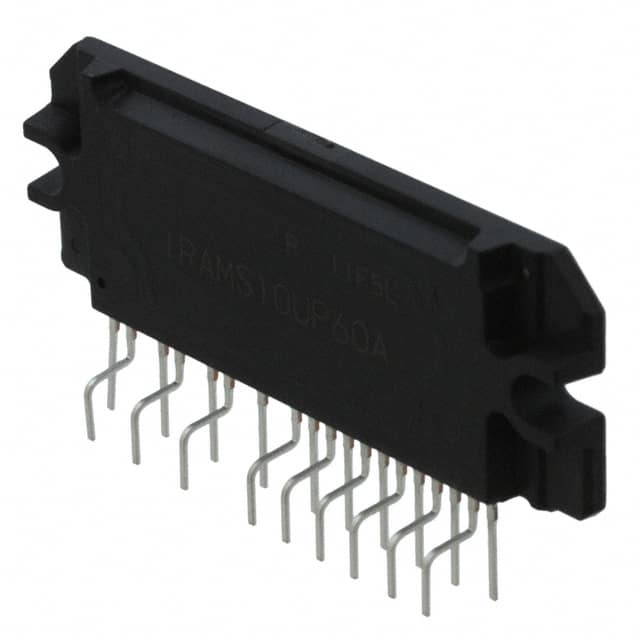

The IRAMS10UP60A is a Plug N Drive integrated power module (IPM) designed for electronic motor control in appliance applications such as washing machines and refrigerators. It integrates a 3-phase IGBT inverter with gate drivers, bootstrap diodes, and protection circuits in a single compact, isolated package.
Key electrical ratings include a maximum collector-emitter blocking voltage of 600V, a positive bus input voltage of up to 450V, and an RMS phase current of 10A at 25°C (5A at 100°C). The module supports a PWM carrier frequency up to 20 kHz and delivers a maximum power dissipation of 20W per phase. Switching losses are characterized at 25°C and 150°C junction temperatures.
The module includes built-in temperature monitoring, over-temperature and overcurrent shutdown, and under-voltage lockout for safe operation. The low-side IGBT emitter pins enable current sensing, and Schmitt-triggered input logic with cross-conduction prevention improves noise immunity.
The IRAMS10UP60A comes in a 23-PowerSIP through-hole package with formed leads, requiring a mounting torque of 0.8 to 1.0 Nm on M3 screws. The operating junction temperature range is -40°C to +150°C for both IGBT/diodes and driver IC.
600V.
450V.
10A.
-40°C to +150°C.
23-PowerSIP through-hole module with formed leads.
The database indicates RoHS3 compliant, but this is unverified.
275 µJ typical, 335 µJ maximum.
