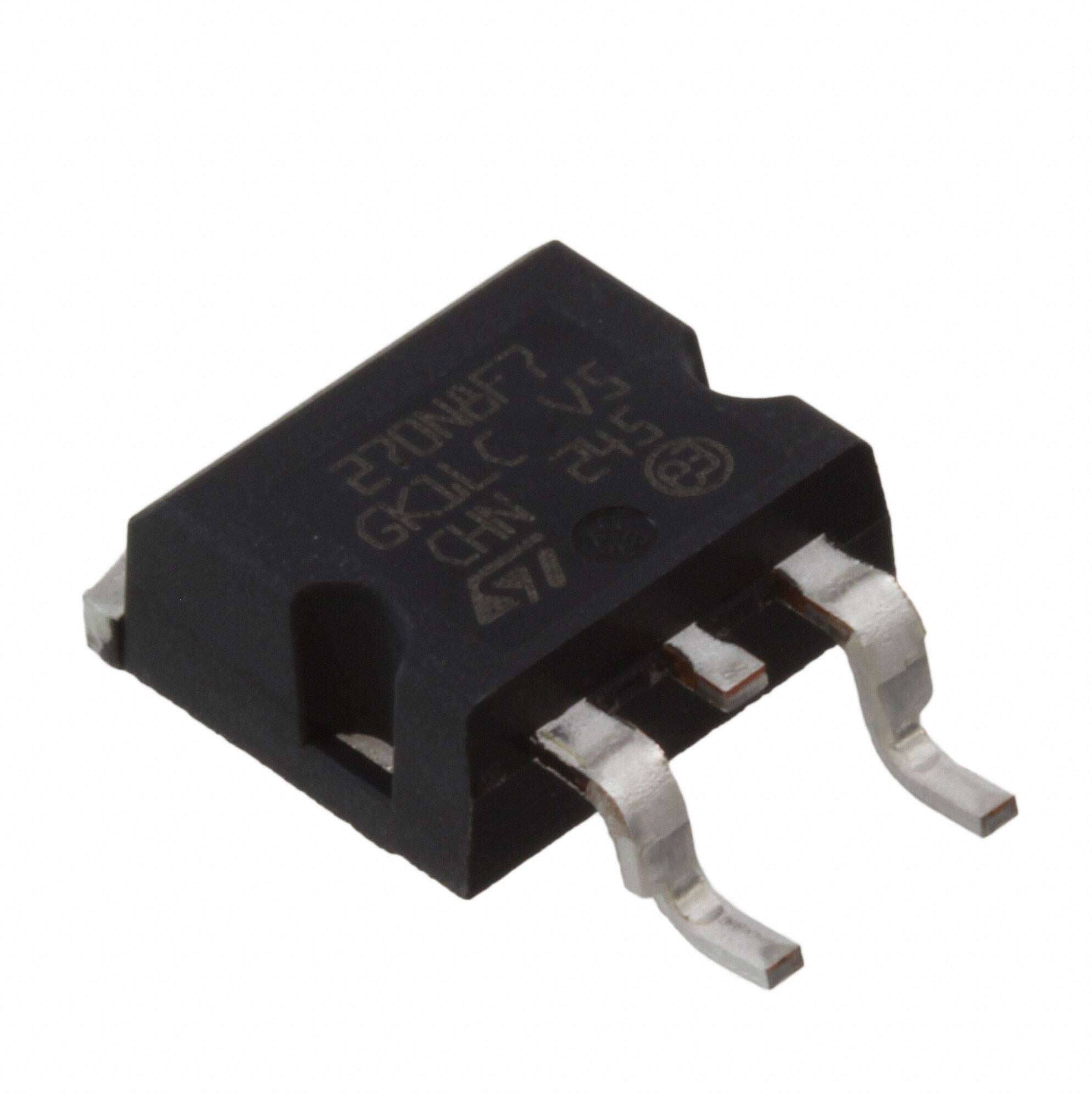

STH270N8F7-6
STMicroelectronics
N-Channel MOSFET rated for 80V drain-source voltage and 180A continuous drain current. Features low on-resistance of 2.1mOhm and 315W power dissipation in H2PAK package.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The STH270N8F7-2 is an N-Channel Power MOSFET manufactured by STMicroelectronics. It is designed for high-current switching applications requiring efficient power management.
Key electrical specifications include a maximum drain-source voltage of 80V, a continuous drain current of 180A at case temperature, and a low on-resistance of 2.1mOhm maximum at 90A and 10V gate drive. The device features a gate threshold voltage of 4V maximum and a gate charge of 193nC at 10V. Input capacitance is 13600pF at 50V drain-source.
The MOSFET is housed in a surface-mount TO-263-3 (D²Pak) package with the supplier device package H²PAK. It supports a maximum junction temperature of 175°C and operates over a temperature range of -55°C to 175°C.
This component is suitable for power conversion, motor control, and other high-current switching circuits where low conduction losses are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
80V.
180A at case temperature Tc.
2.1mOhm maximum at 90A drain current and 10V gate-source voltage.
-55°C to 175°C (junction temperature).
Surface mount TO-263-3 (D²Pak) with H²PAK supplier device package.
193nC maximum at 10V gate-source voltage.
13600pF maximum at 50V drain-source voltage.
