Mfr Part #:

SSW-150-02-S-D

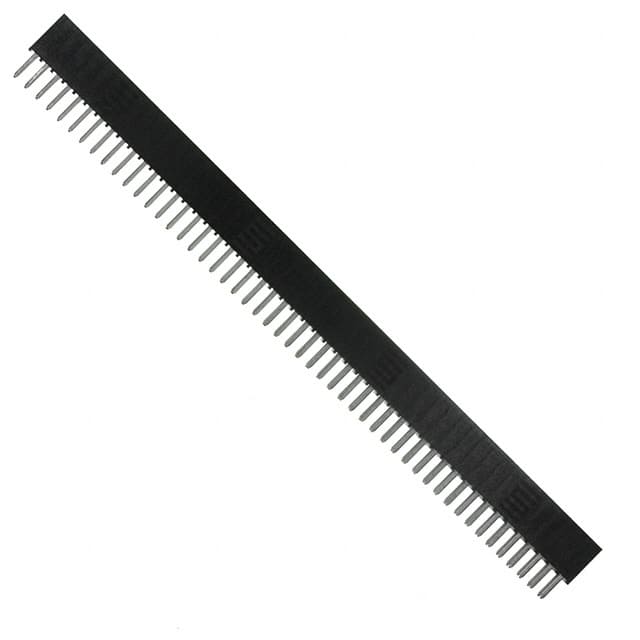

100 position receptacle connector from Samtec's SSW series. Features 2.54mm pitch, through hole mounting, and tin plated phosphor bronze contacts.

✓ Total Stock: 20 pcs

$ Price Range: $7.98 - $12.21

SSW-150-02-S-D Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	20 pcs On Request	20 pcs	On Request	1	On Request	On Request	0805	On Request	On Request

SSW-150-02-S-D Description

Short technical summary and product information.

The Samtec SSW-150-02-S-D is a 100 position receptacle connector designed for board-to-board or cable applications. It features a dual row configuration with 2.54mm (0.100 inch) pitch and through hole solder termination. The connector uses forked contacts made of phosphor bronze with a tin plating (30.0µin thickness) and a black liquid crystal polymer insulator rated UL94 V-0.

Electrical ratings include 4.7A per contact (with 2 pins powered) and a voltage rating of 465 VAC / 655 VDC. The operating temperature range is -55°C to +105°C for tin plating (verify with manufacturer for specific application). The connector mates with Samtec TSW, MTSW, MTLW, DW, EW, ZW, TSS, ZSS, TSM, TSSH, and HTSS series.

Packaging is through hole with solder termination. The contact length is 4.93mm and insulation height is 8.51mm. This connector is suitable for high density signal routing in industrial control, test equipment, and other electronic systems requiring reliable interconnection.

SSW-150-02-S-D Quick Information

Product Type: Receptacle Connector

Series: SSW

Canonical Name: SSW-150-02-S-D 100 Position 2.54mm Pitch Through Hole Receptacle Connector

Subcategory: Board-to-Board or Cable

SSW-150-02-S-D Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes (Lead-Free Solderable)

SSW-150-02-S-D Estimated Pricing

Qty	Low	High
1+	$12.21	$12.21
100+	$9.74	$9.74
500+	$8.91	$8.91
1,000+	$7.98	$7.98

Estimated market price range - modelled values for guidance only, not live distributor offers.

SSW-150-02-S-D Features

100 position dual row receptacle connector.
2.54mm (0.100 inch) pitch spacing.
Through hole solder termination.
Tin plated phosphor bronze contacts.
Rated for 4.7A per contact.

SSW-150-02-S-D Applications

Used in board-to-board interconnections.
Suitable for cable-to-board applications.
Ideal for high density signal routing.
Common in industrial control systems.

SSW-150-02-S-D FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the SSW-150-02-S-D have?

100 positions.

What is the pitch of this connector?

2.54mm (0.100 inches).

What is the current rating per contact?

4.7A per contact (2 pins powered).

What is the voltage rating?

465 VAC / 655 VDC.

What is the mounting type?

Through hole.

What is the contact finish?

Tin.

What is the flammability rating of the insulator?

UL94 V-0.

Category	Headers, Receptacles, Female Sockets
Manufacturer Name	Samtec Inc.
Connector Type	Receptacle
Contact Finish	Tin
Contact Finish Thickness	30.0µin (0.76µm)
Contact Length	4.93mm (0.194")
Contact Material	Phosphor Bronze
Contact Type	Forked
Current Rating (Amps)	4.7A per Contact
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	8.51mm (0.335")
Insulator Material	Liquid Crystal Polymer (LCP)
Lead Spacing	2.54mm (0.100")
Lead Style	Standard Insertion Force
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	100
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	2.54mm (0.100")
Row Spacing	2.54mm (0.100")
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
Termination Style	Solder
Voltage Rating	465 VAC / 655 VDC
