22-28-0034
Molex
The Molex 22-28-0034 is a header, male pin with 3 positions and a 2.54mm pitch. It is rated for 7A and 250VAC and features through-hole mounting.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Positions |

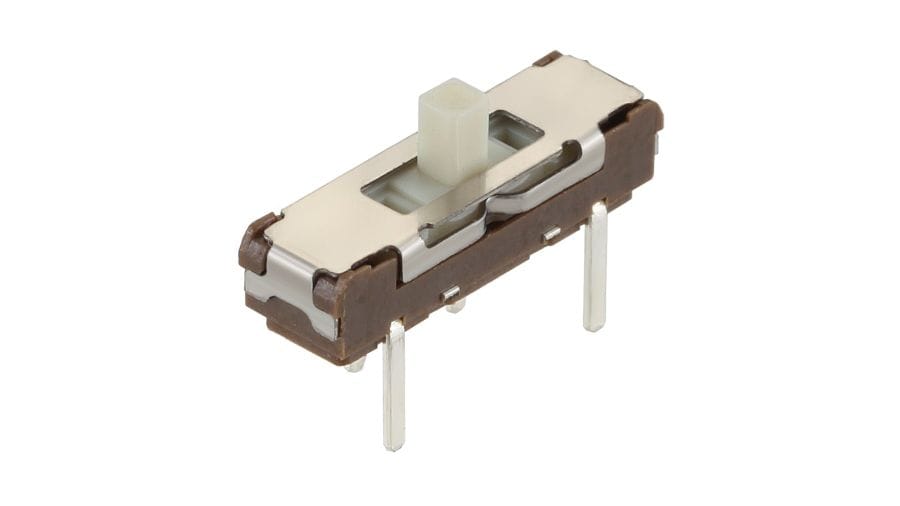

The Alps Alpine SSSS211900 is a slide switch belonging to the SSSS2 Series, designed for miniaturization and high-density integration in various electronic devices. This switch offers a travel of 2.0mm and a mount height of 3.5mm, making it suitable for space-constrained applications.
Electrically, the SSSS211900 is rated for a maximum of 0.3A at 6V DC and a minimum of 50μA at 3V DC. It features a maximum initial contact resistance of 70mΩ, which increases to 130mΩ after its rated operating life of 10,000 cycles at maximum load. The switch operates with non-shorting changeover timing and is designed for manual, dip soldering.
With dimensions of 13.0mm x 3.5mm x 3.5mm, this slide switch is well-suited for applications in healthcare equipment, major home appliances, and audio/TV devices. Its compact form factor supports miniaturization and high-density integration.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SSSS211900 slide switch has a maximum rating of 0.3A at 6V DC.
The initial contact resistance is a maximum of 70mΩ, and after its lifetime, it is a maximum of 130mΩ.
The operating life is 10,000 cycles at maximum rated load.
The dimensions are 13.0mm x 3.5mm x 3.5mm (W x D x H).
The travel distance is 2.0mm.
The SSSS211900 slide switch is designed for manual dip soldering.
