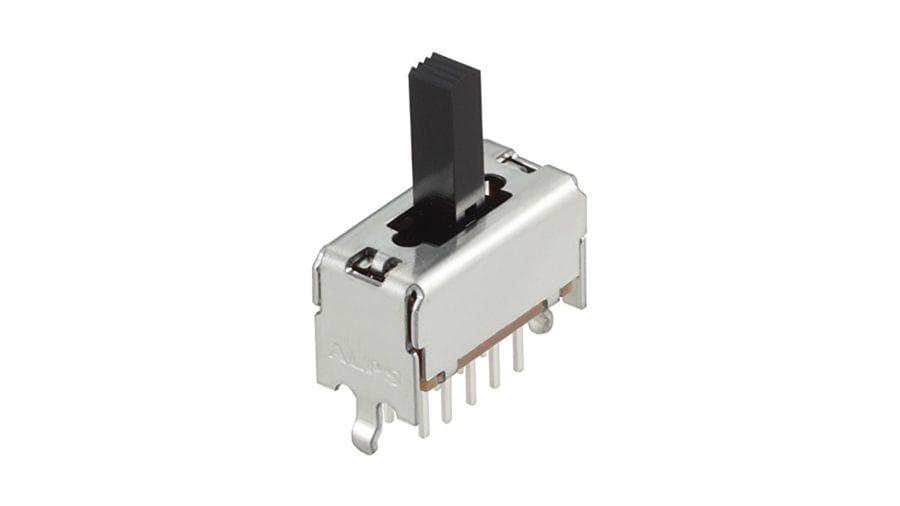

SSSF025100 The Alps Alpine SSSF025100 is a slide switch from the SSSF Series. It offers 2 poles and 3 positions with a 2.0mm travel.
Mfr Part #:

SSSF025100

Available from 1 distributors
Mfr Name: Alps Alpine
Alps Alpine
The Alps Alpine SSSF025100 is a slide switch from the SSSF Series. It offers 2 poles and 3 positions with a 2.0mm travel.
✓ Total Stock: 10,213 pcs
$ Price Range: $2.16

SSSF025100 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
10,213 pcs
On Request
10213 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SSSF025100 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Dimensions
Insulation Resistance
Operating Temperature Range
Positions
View Similar Products (0)

SSSF025100 Description

Short technical summary and product information.

The Alps Alpine SSSF025100 is a slide switch belonging to the SSSF Series. This general-purpose switch is designed for diverse applications, including audio and TV equipment. It features a compact design with dimensions of 14.5 x 7.0 x 8.5 mm and a travel distance of 2.0 mm.



Key electrical specifications include a rating of 0.1A 30V DC / 50μA 3V DC, an initial contact resistance of 25mΩ max., and an insulation resistance of 100MΩ min. The switch is built for durability, with an operating life of 10,000 cycles under both loaded and unloaded conditions. It operates within a temperature range of -40°C to +85°C.



This slide switch is suitable for manual dip soldering and features a snap-in mounting method. It is supplied in bulk packaging with a minimum order unit of 800 pieces for Japan and 4,000 pieces for export.

SSSF025100 Quick Information

Product Type: Slide Switch
Series: SSSF Series
Canonical Name: Alps Alpine SSSF Series Slide Switch
Subcategory: Slide Switch

SSSF025100 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SSSF025100 Estimated Pricing

Qty Low High
1+ $2.16 $2.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

SSSF025100 Features

  • 2 poles and 3 positions.
  • 2.0mm travel distance.
  • Rated for 0.1A 30V DC.
  • 10,000 cycle operating life.
  • Operates from -40°C to +85°C.

SSSF025100 Applications

  • Suitable for switch control in electronic devices.
  • Used in audio and TV equipment switching.
  • Ideal for industrial automation control panels.
  • Applicable in automotive electronic systems.
  • Suitable for general-purpose switching applications.

SSSF025100 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the Alps Alpine SSSF025100 slide switch?

The switch has a maximum rating of 0.1A 30V DC and a minimum rating of 50μA 3V DC.

What is the contact resistance of the SSSF025100 slide switch?

The initial contact resistance is 25mΩ maximum, and after lifetime, it is 65mΩ maximum.

What is the operating life of the Alps Alpine SSSF025100?

The switch has an operating life of 10,000 cycles without load and 10,000 cycles with load at maximum rated load.

What are the dimensions of the SSSF025100 slide switch?

The dimensions are 14.5mm in width, 7.0mm in depth, and 8.5mm in height.

What is the operating temperature range for this slide switch?

The operating temperature range is -40°C to +85°C.

What is the RoHS status of the SSSF025100?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the SSSF025100?

The Moisture Sensitivity Level is 1.
