| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
57 pcs
|
57 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating (2 pins powered) | |
| Fastening Type | |
| Halogen Free | |
| Industrial Grade | |
| Insertion Depth | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Lead-Free Solderable | |
| Material Flammability Rating | |
| Mating Cycles (10 µ" Au) | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Style | |
| Termination | |
| Voltage Rating |

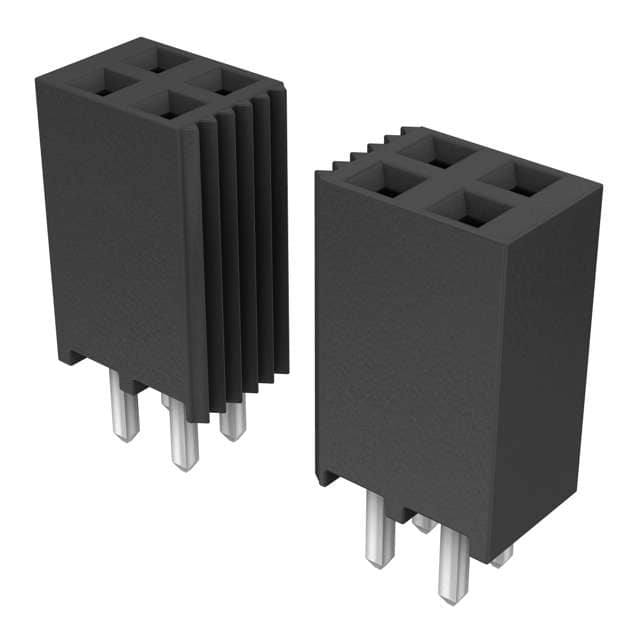

The Samtec SSQ-113-01-S-D is a 26 position, double row receptacle socket strip from the SSQ series. It features a 2.54mm (0.100") pitch and row spacing, with through hole solder termination. The insulator is molded from black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating.
The contacts are phosphor bronze with a tin finish (30.0µin/0.76µm) and a forked contact type. The connector is rated for 6.3A per pin (2 pins powered) and 465VAC / 655VDC. Operating temperature range is -55°C to +125°C. The insertion depth range is 3.68mm to 6.35mm, and it is rated for a minimum of 100 mating cycles with 10µ" gold plating.
This connector is designed for board-to-board or cable applications with a push-pull fastening type. It is lead-free solderable and supplied in bulk packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.63 | $5.63 |
| 10+ | $4.78 | $4.78 |
| 100+ | $4.06 | $4.06 |
| 500+ | $3.63 | $3.63 |
| 1,000+ | $3.51 | $3.51 |
| 5,000+ | $35.17 | $35.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 26 positions in 2 rows, all positions loaded.
The current rating is 6.3A per pin with 2 pins powered.
The voltage rating is 465VAC and 655VDC.
It is a through hole mounting type with solder termination.
The operating temperature range is -55°C to +125°C.
The contact material is phosphor bronze with a tin finish of 30.0µin (0.76µm).
