| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

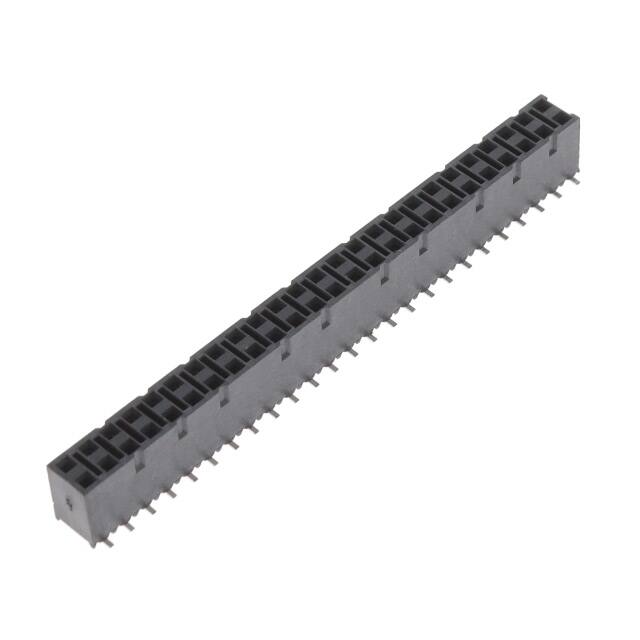

The SSM-125-L-DV-BE is a 50-position receptacle connector from Samtec's SSM series. It features a dual-row configuration with 2.54mm pitch and row spacing, making it suitable for compact board-to-board or cable-to-board applications. The connector uses a bottom entry design with female socket contacts and push-pull fastening for secure mating.
The contacts are finished with tin (0.25µm) and rated for 5.2A per contact. The connector can handle voltages up to 405VAC or 572VDC. It operates over a wide temperature range from -55°C to 125°C, making it suitable for industrial and harsh environments.
The SSM-125-L-DV-BE is surface mount terminated with solder, enabling automated assembly processes. The black insulation has a height of 7.37mm. All 50 positions are loaded, providing full connectivity in a compact form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.69 | $6.69 |
| 9+ | $5.77 | $5.77 |
| 27+ | $5.72 | $5.72 |
| 108+ | $4.97 | $4.97 |
| 504+ | $4.32 | $4.32 |
| 1,008+ | $3.72 | $3.72 |
| 2,007+ | $3.44 | $3.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SSM-125-L-DV-BE has 50 positions, all loaded.
The pitch is 2.54mm (0.100") with the same row spacing.
The current rating is 5.2A per contact.
The voltage rating is 405VAC or 572VDC.
The mounting type is surface mount with solder termination.
The operating temperature range is -55°C to 125°C.
The contact finish is tin with a thickness of 0.25µm.
