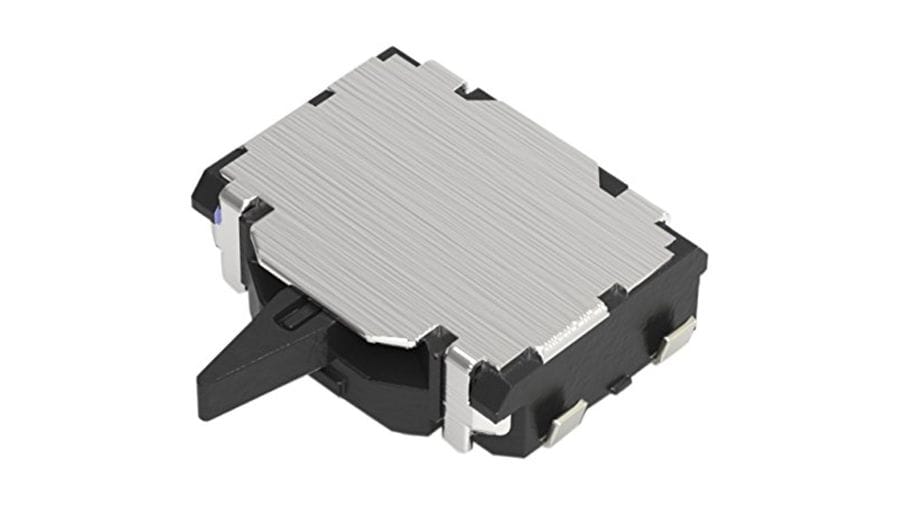

SSCM110100 The Alps Alpine SSCM110100 is a compact, thin-profile detector switch designed for two-way lateral detection. It features 1 pole, 2 positions, and a low operating force.
Mfr Part #:

SSCM110100

Available from 1 distributors
Mfr Name: Alps Alpine
Alps Alpine
The Alps Alpine SSCM110100 is a compact, thin-profile detector switch designed for two-way lateral detection. It features 1 pole, 2 positions, and a low operating force.
✓ Total Stock: 102,000 pcs

SSCM110100 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
102,000 pcs
On Request
102000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SSCM110100 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Insulation Resistance
Mounting Type
Operating Force
Operating Temperature Range
Positions
Tape Width
Terminal Type
View Similar Products (0)

SSCM110100 Description

Short technical summary and product information.

The Alps Alpine SSCM110100 is a compact detector switch from the SSCM Series, featuring a thin-profile design with a body height of 1.5mm. This switch is capable of detecting movement in two lateral directions.



Key electrical specifications include a rating of 1mA 5V DC / 50μA 3V DC, with a maximum contact resistance of 2Ω initially and 5Ω after operating life. It offers a mechanical durability of 50,000 cycles without load and 50,000 cycles with load.



The switch operates within a temperature range of -10℃ to +60℃. Its mechanical characteristics include an operating force of 0.35N max. and a total travel position of 1.57mm. The dimensions are 4.0mm x 5.0mm x 1.5mm.



Applications for the SSCM110100 include mobile devices such as smartphones and wearables, gaming consoles, and audio/video equipment. It is designed for PC board mounting via reflow soldering.

SSCM110100 Quick Information

Product Type: Detector Switch
Series: SSCM Series
Canonical Name: Alps Alpine SSCM Series Compact Two-way Detection Switch
Subcategory: Compact Two-way Detection

SSCM110100 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SSCM110100 Features

  • Compact two-way lateral detection switch.
  • Thin-profile design, 1.5mm height.
  • 1 pole, 2 positions configuration.
  • 0.35N max operating force.
  • 50,000 cycle operating life.

SSCM110100 Applications

  • Ideal for smartphones and tablets.
  • Suitable for wearables and headsets.
  • Used in gaming consoles.
  • Applicable in audio and camera devices.

SSCM110100 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage and current rating for the SSCM110100?

The rating is 1mA 5V DC / 50μA 3V DC (Resistive load).

What is the contact resistance of the SSCM110100 switch?

The initial contact resistance is 2Ω max., and after operating life, it is 5Ω max.

What is the mechanical durability of the SSCM110100?

It has an operating life of 50,000 cycles without load and 50,000 cycles with load.

What are the dimensions of the SSCM110100 switch?

The dimensions are 4.0mm x 5.0mm x 1.5mm (W×D×H).

What is the operating temperature range for this switch?

The operating temperature range is -10℃ to +60℃.

What is the RoHS status of the SSCM110100?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the SSCM110100?

The Moisture Sensitivity Level is 1.
