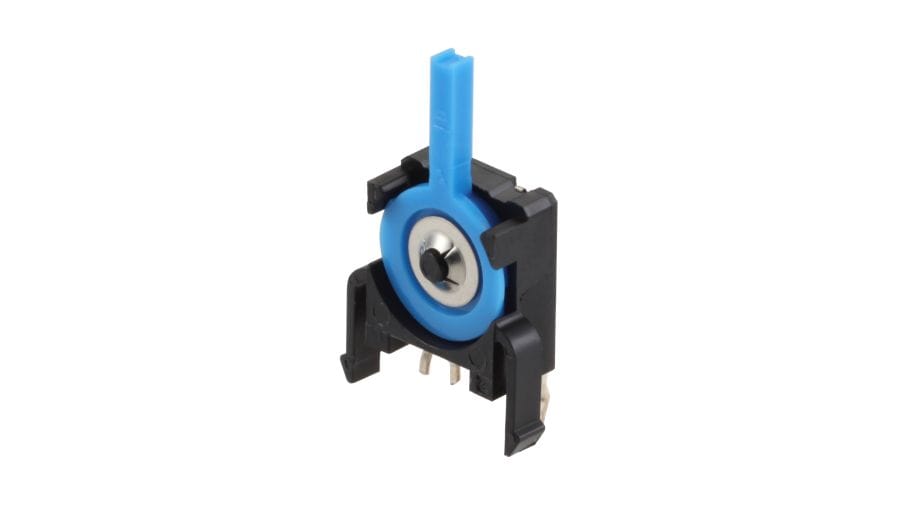

SSCF310100 The Alps Alpine SSCF310100 is a detector switch from the SSCF Series. It offers a 0.1A 12V DC rating and a mechanical life of 50,000 cycles.
Mfr Part #:

SSCF310100

Available from 1 distributors
Mfr Name: Alps Alpine
Alps Alpine
The Alps Alpine SSCF310100 is a detector switch from the SSCF Series. It offers a 0.1A 12V DC rating and a mechanical life of 50,000 cycles.
✓ Total Stock: 9,300 pcs
$ Price Range: $7.19

SSCF310100 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
9,300 pcs
On Request
9300 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SSCF310100 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Operating Force
Positions
Terminal Type
View Similar Products (0)

SSCF310100 Description

Short technical summary and product information.

The Alps Alpine SSCF310100 is a detector switch belonging to the SSCF Series. This series is designed with two-way detection capability, improving design freedom around set mechanisms.



Key electrical specifications include a maximum current rating of 0.1A at 12V DC and a minimum rating of 50μA at 3V DC. The switch exhibits a maximum initial contact resistance of 100mΩ, which increases to a maximum of 300mΩ after its rated operating life. The operating life is rated for 50,000 cycles, both with and without load.



Mechanically, the SSCF310100 has an operating force of 0.7N maximum. Its dimensions are 11.0mm in width, 5.8mm in depth, and 12.4mm in height. The terminal type is for PC board mounting, and it features a non-shorting changeover timing.



This detector switch is suitable for automotive applications, including hood latch systems. It is designed for improved design freedom in set mechanisms.

SSCF310100 Quick Information

Product Type: Detector Switch
Series: SSCF Series
Canonical Name: Alps Alpine SSCF Series Detector Switch
Subcategory: Detector Switches

SSCF310100 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SSCF310100 Estimated Pricing

Qty Low High
1+ $7.19 $7.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

SSCF310100 Features

  • Two-way detection capability switch.
  • Rated for 0.1A at 12V DC.
  • 50,000 cycles operating life.
  • Maximum operating force of 0.7N.
  • Suitable for automotive applications.

SSCF310100 Applications

  • Used in automotive current regulation circuits
  • Suitable for precise current control in electronic devices
  • Ideal for circuits requiring non-shorting changeover
  • Applied in power management modules

SSCF310100 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum current rating for the Alps Alpine SSCF310100?

The maximum current rating is 0.1A at 12V DC.

What is the expected operating life of the SSCF310100 switch?

The operating life is rated for 50,000 cycles, both with and without load.

What is the maximum operating force required for the SSCF310100?

The maximum operating force is 0.7N.

What are the dimensions of the Alps Alpine SSCF310100 detector switch?

The dimensions are 11.0mm in width, 5.8mm in depth, and 12.4mm in height.

What type of terminal does the SSCF310100 use?

It uses terminals for PC board mounting.
