SS-7188S-A-PG4-1-BA
Stewart Connector

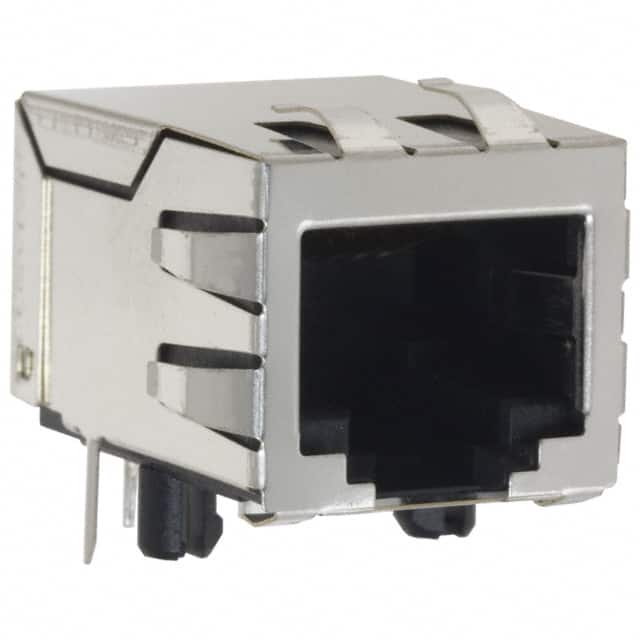

Shielded modular jack, 8p8c (RJ45), 1 port, through hole, right angle orientation, with board lock and EMI finger.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination |
The SS-6488S-A-PG4-BA is a single-port RJ45 modular jack from Stewart Connector. It features 8P8C (8 position, 8 contact) configuration with a right-angle orientation for through-hole mounting. The connector is fully shielded and includes an EMI finger for enhanced electromagnetic interference protection. A board lock feature secures the connector to the PCB during soldering. Contacts are made of copper alloy with gold finish, and termination is via solder. The tab direction is down.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
| 10+ | $1.70 | $1.70 |
| 25+ | $1.41 | $1.41 |
| 80+ | $1.34 | $1.34 |
| 240+ | $1.26 | $1.26 |
| 560+ | $1.15 | $1.15 |
| 1,040+ | $1.12 | $1.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This is a modular jack with 8P8C (RJ45, Ethernet) configuration.
It has 1 port.
Through-hole mounting with 90° angle (right) orientation.
Yes, it is shielded and includes an EMI finger.
Yes, it features a board lock.
Contacts are copper alloy with gold finish.
